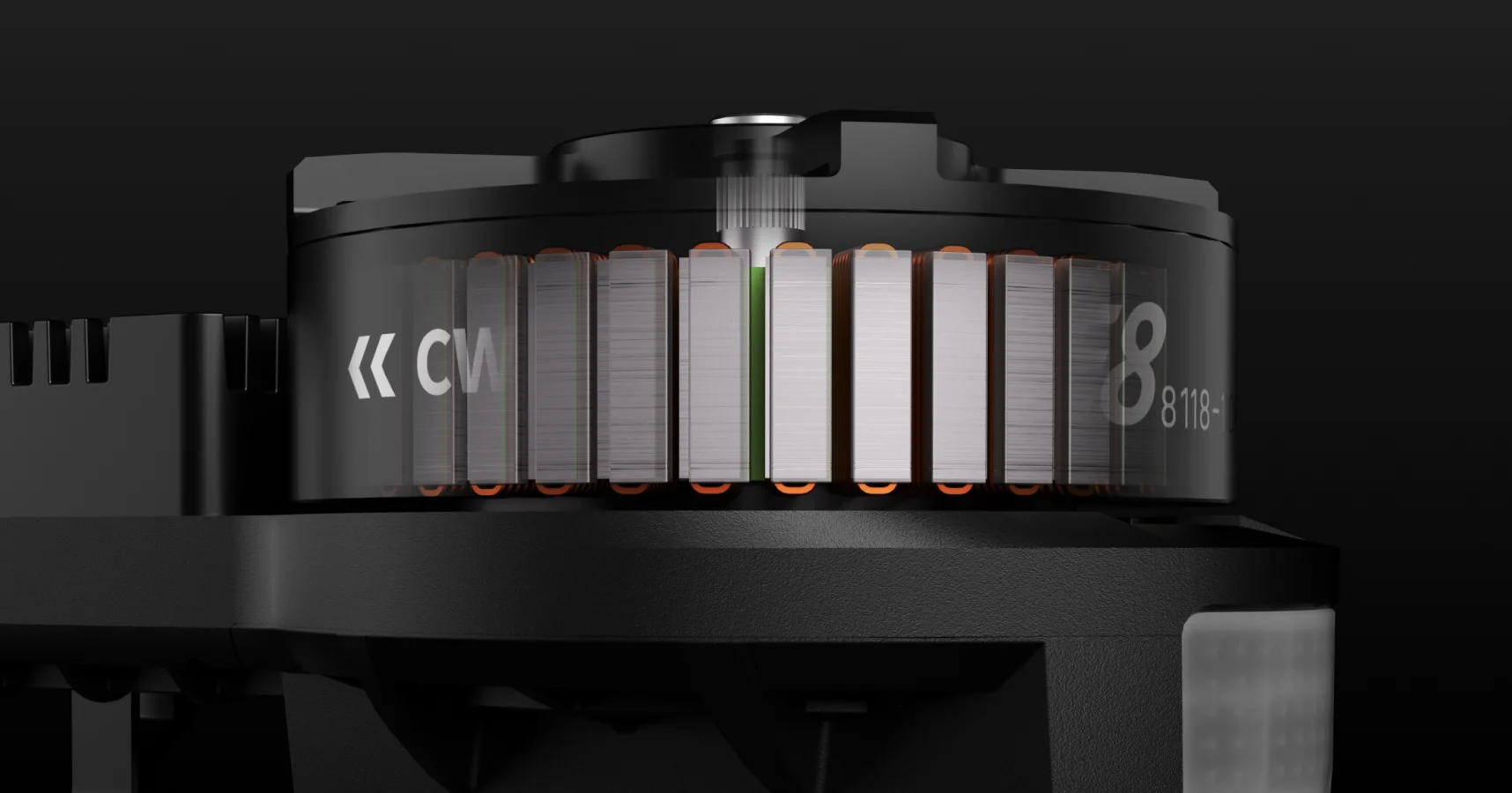

Engineered with precision dynamic balancing and an optimized electromagnetic design
Unmatched Cooling for Ultimate Thrust

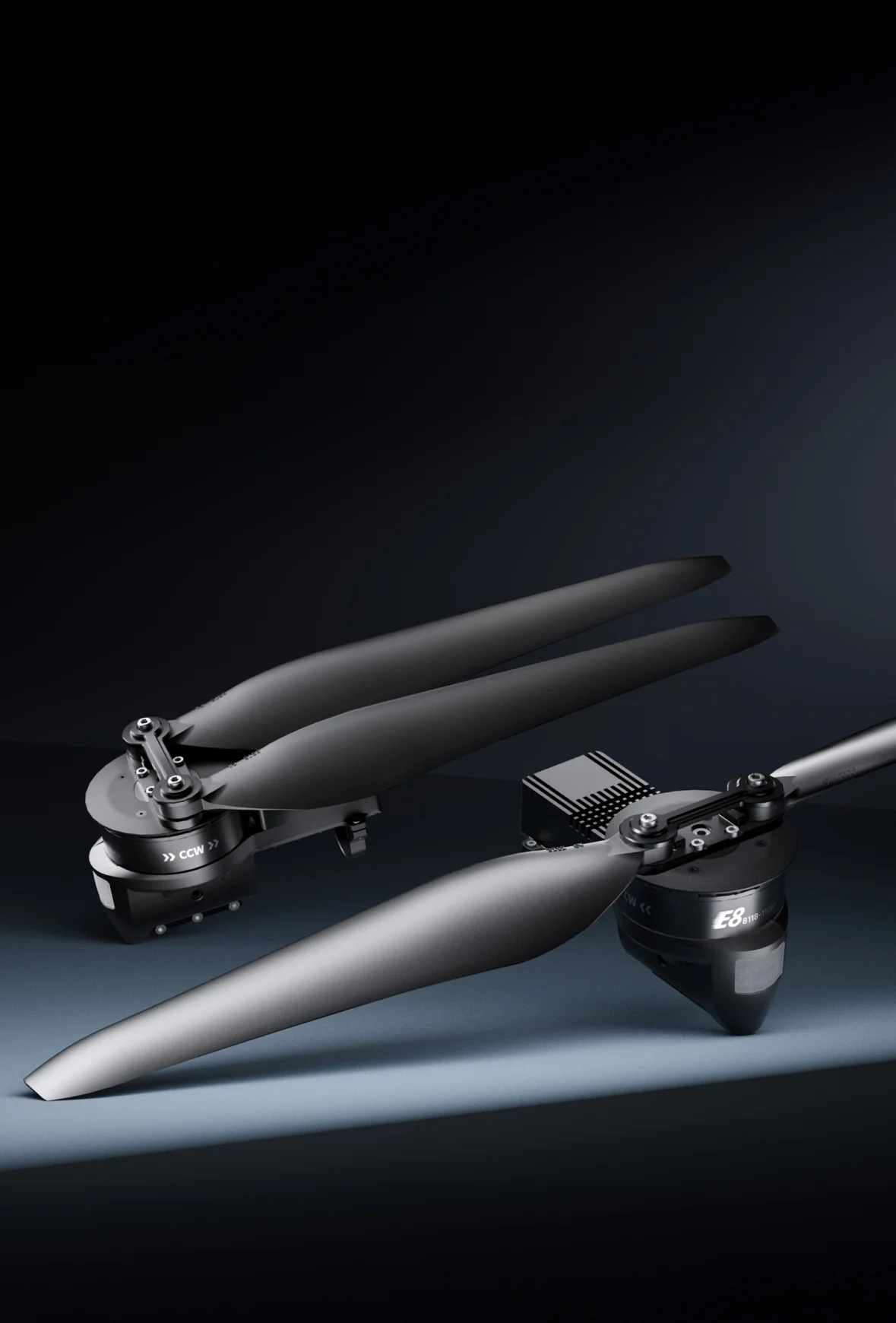

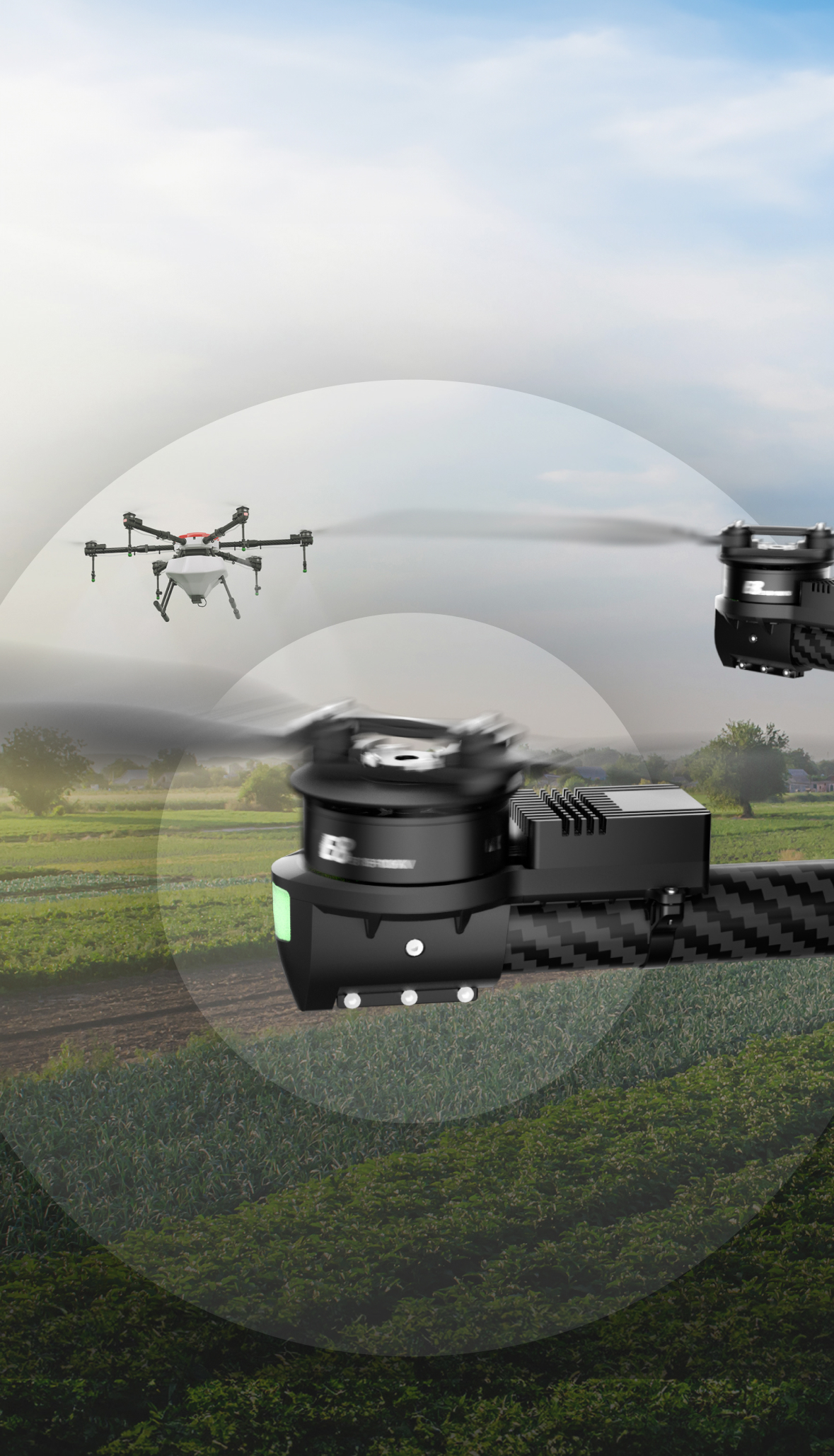

E8 Propulsion System
Maximum Thrust 18.5kg per Axis / Optimal Heat Dissipation /
Precision Dynamic Balancing
Precision Dynamic Balancing
E8 Propulsion System

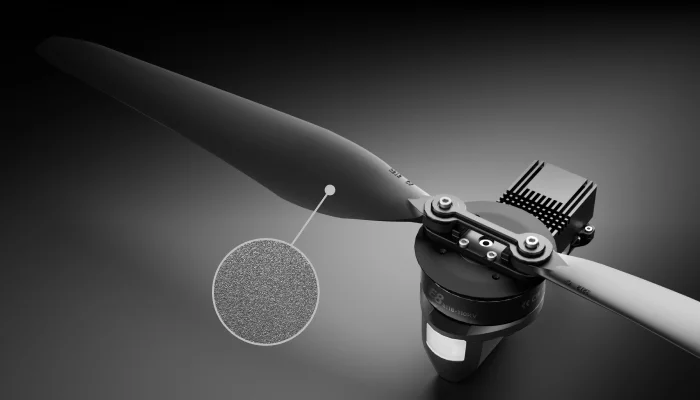

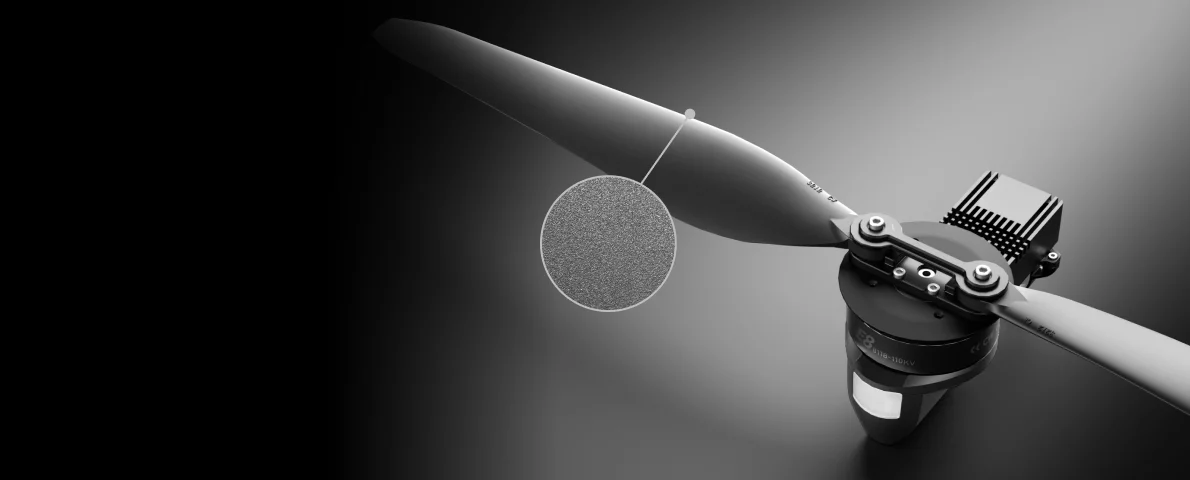

32-inch propellers
Constructed from Carbon Fiber Reinforced Nylon
Integrated Design, Modular Assembly, Easy Maintenance

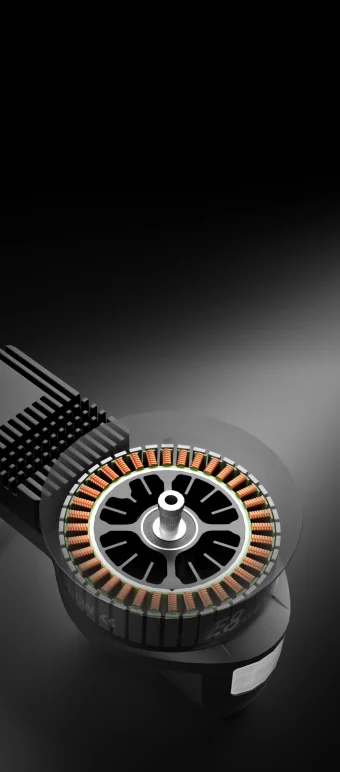

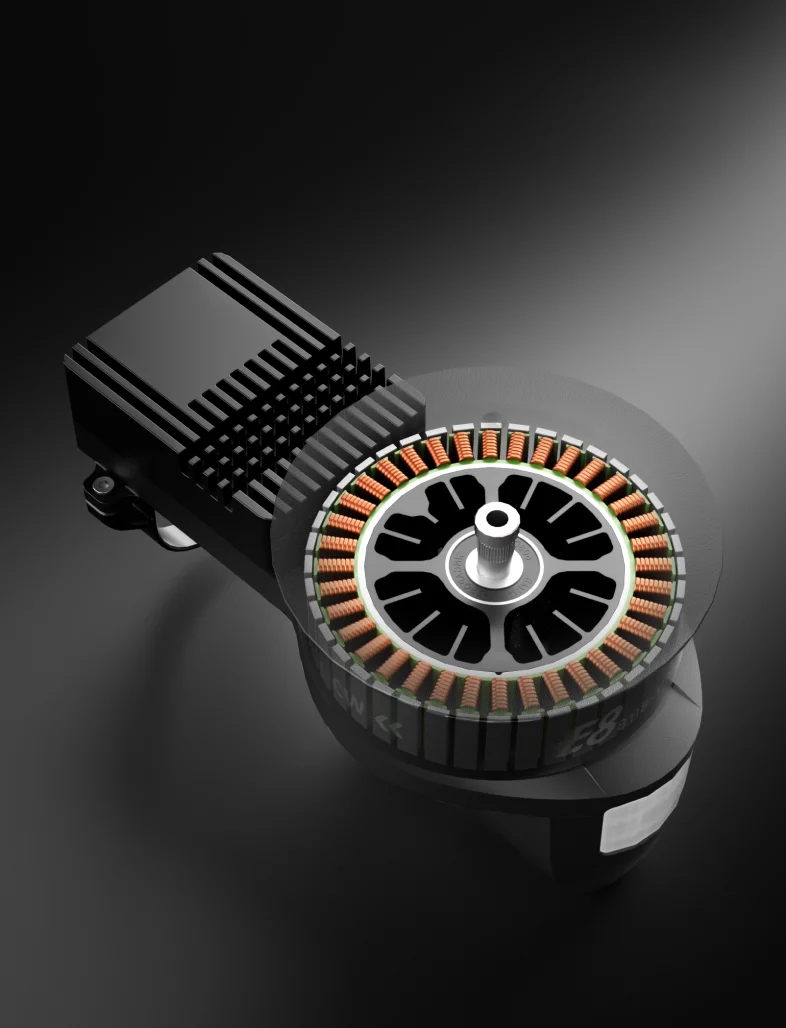

High-temp enamel wire rated to 200℃
The top cover utilizes a PA66 + 30% Glass Fiber composite. With an ultra-high bending strength of 270MPa and temperature resistance up to 200°C.

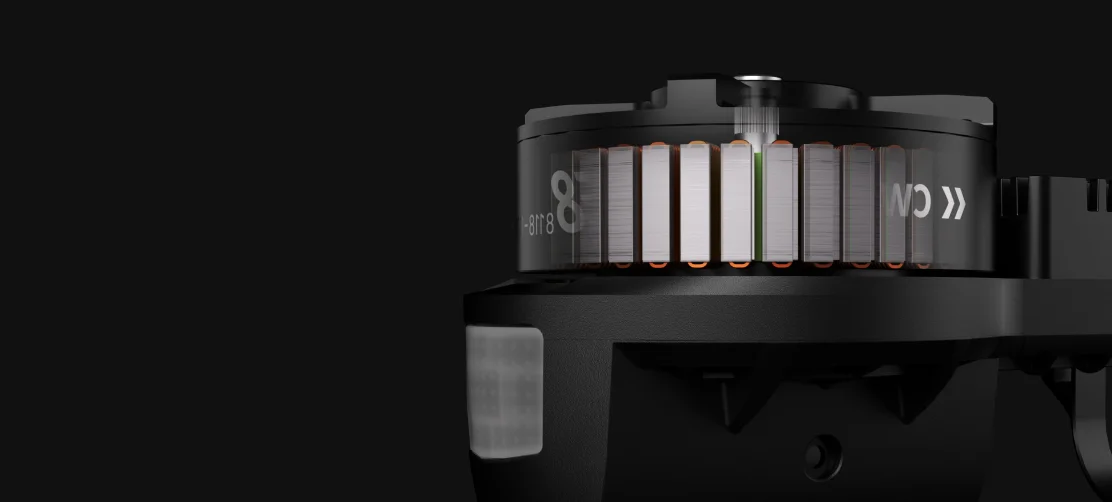

Instant Response, Steady Performance
Hardware-Software Synergy through fine-tuned optimization of the Transmission--Control--Execution link, E8 achieves millisecond- level response and precise, stable flight performance.

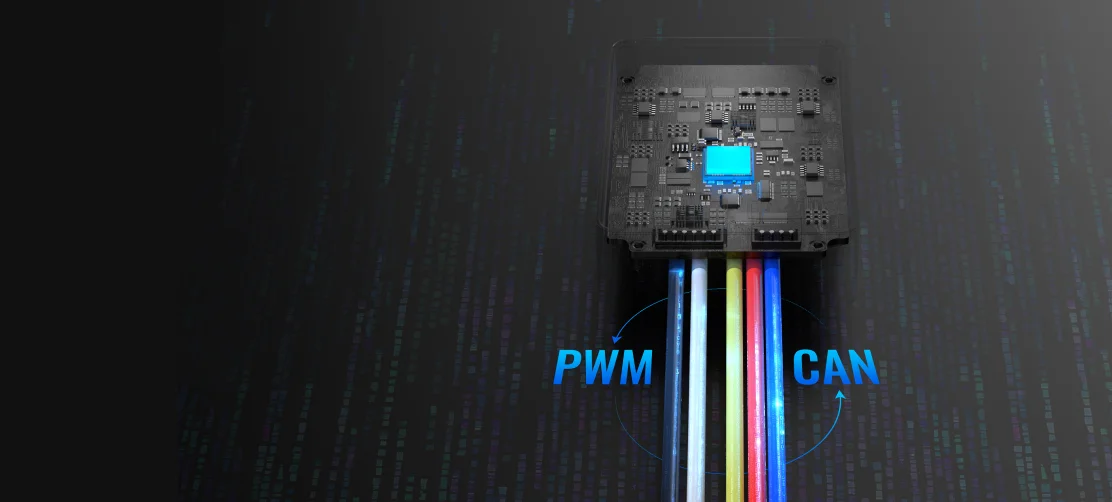

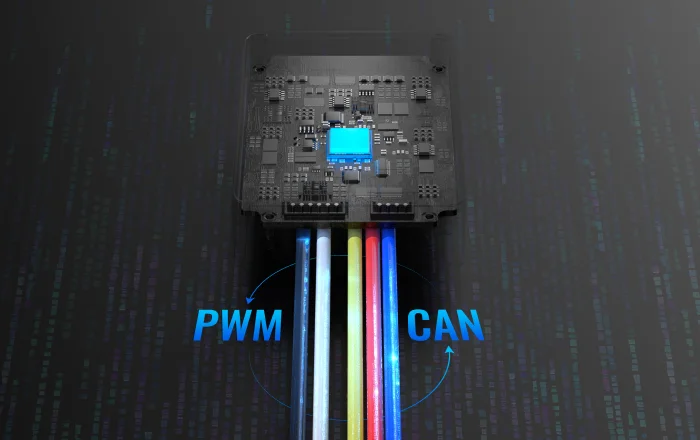

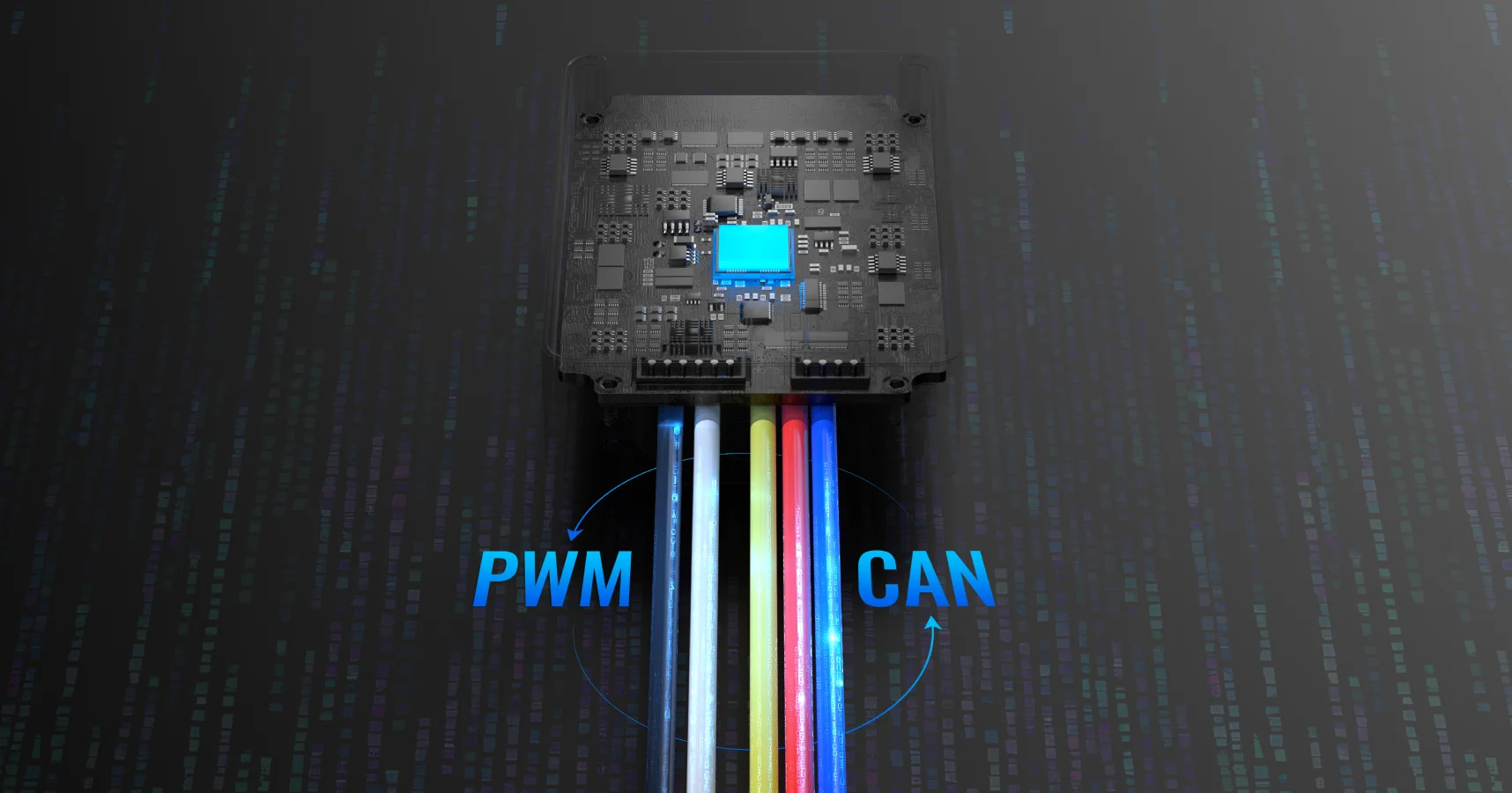

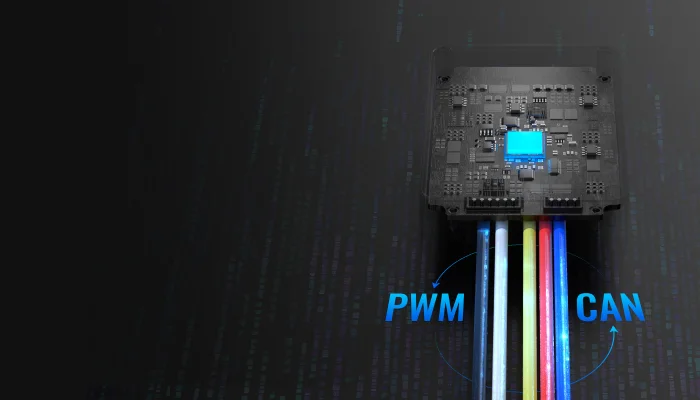

Dual Communacation Protocals & Signal Isolation
The E8 Propulsion System incorporates redundant PWM/ CAN throttle inputs and signal isolation.
High-efficiency centrifugal air ducts
planar heat dissipation structure with large fins
Enlarged protruding cooling fins
Rugged Structure, Precision Manufacturing Meets Hardcore Material Science
Optimized structure balance brute strength with extreme weather resistance.Whether it's scorching heat or continuous heavy-duty operations, the E8 performs without compromise.

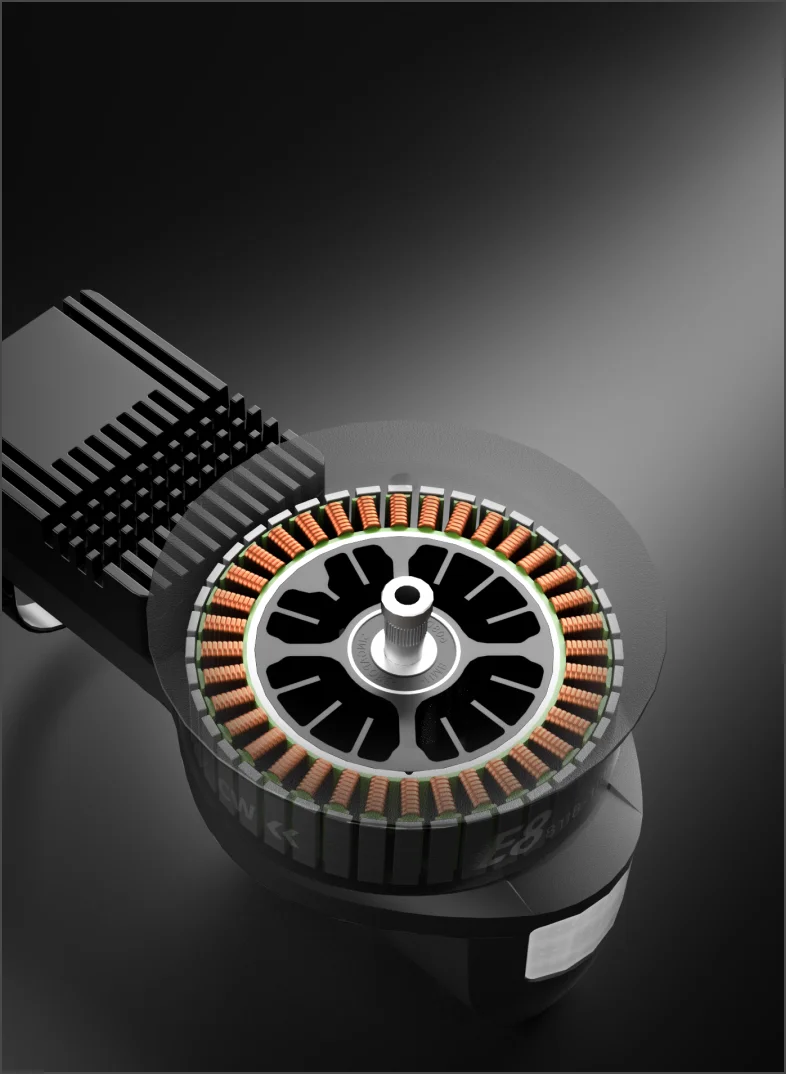

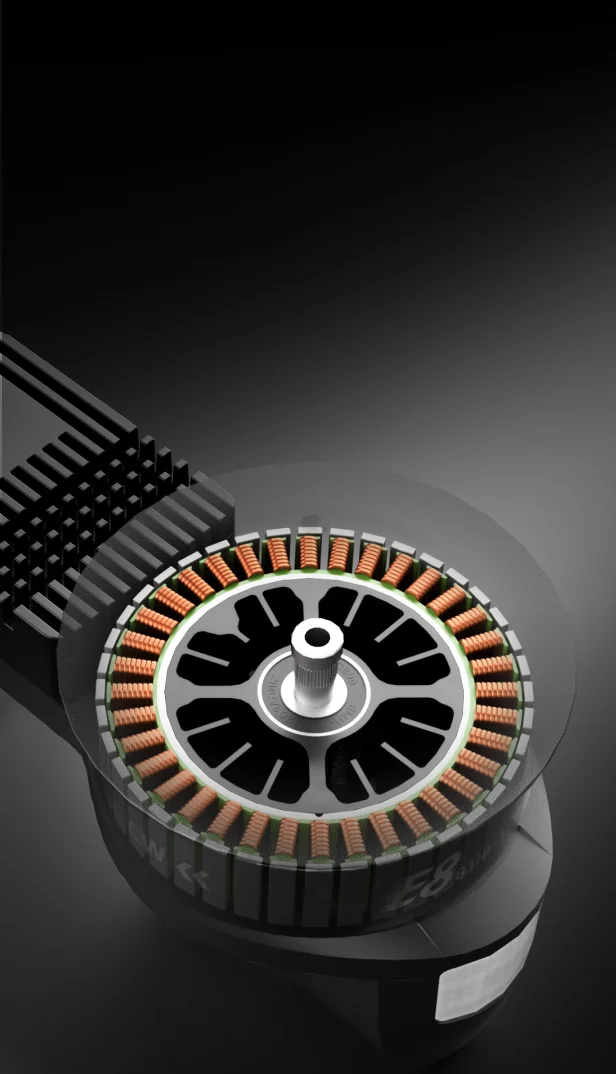

Motor
The top cover utilizes a PA66 + 30% Glass Fiber composite. With an ultra-high bending strength of 270MPa and temperature resistance up to 200℃,it reduces weight while expanding the cooling surface area. Paired with N48SH high-performance magnets and NMB bearings,the motor provides a solid foundation for heavy-lift drone.

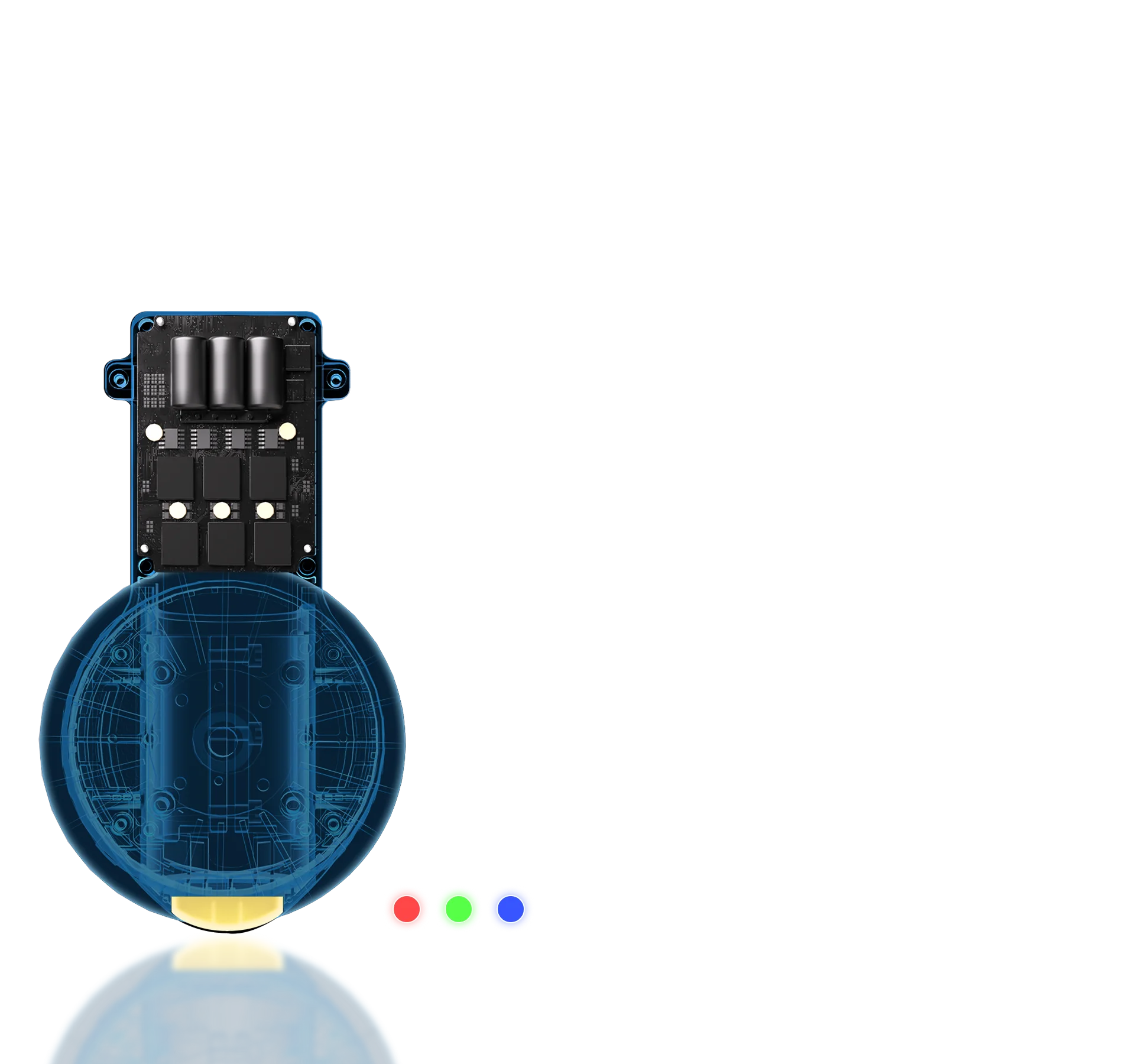

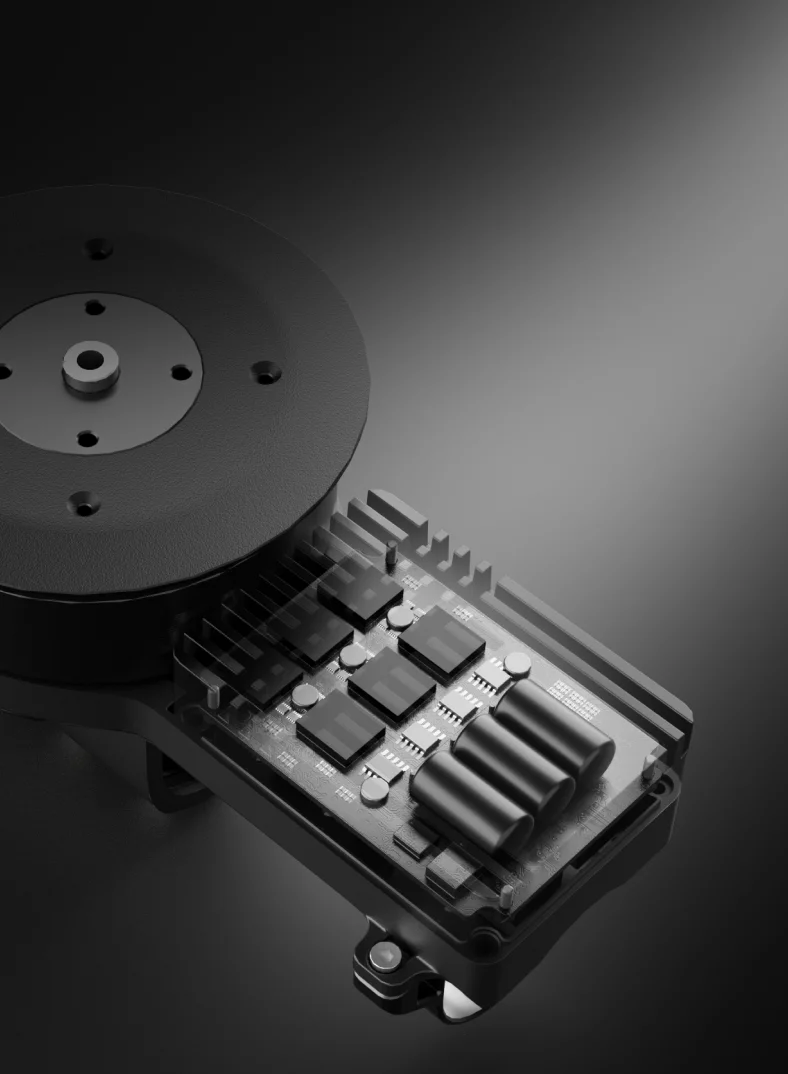

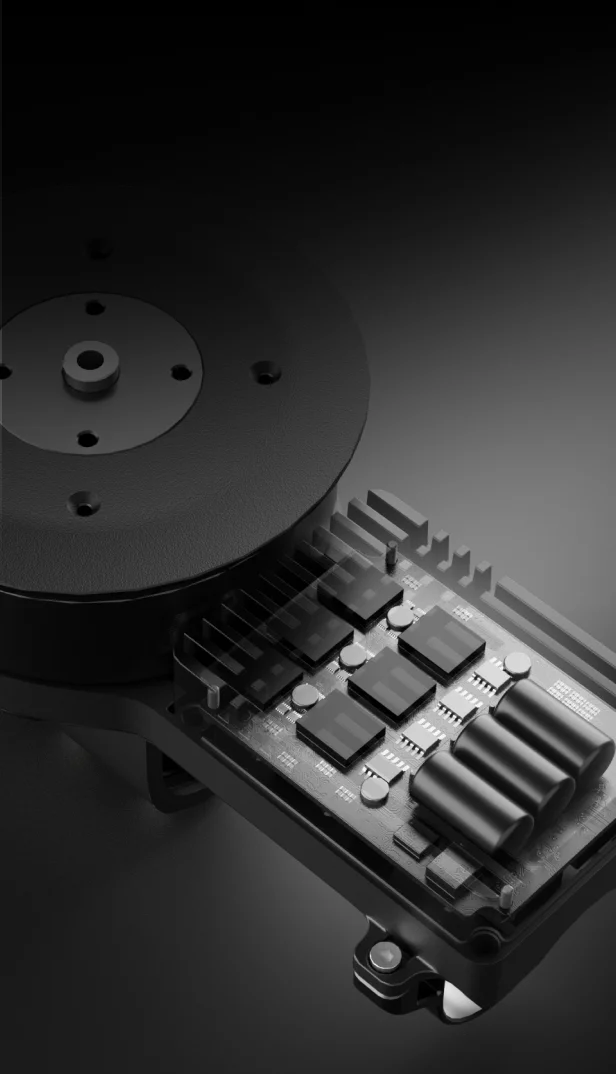

ESC
Featuring PWM and CAN dual-throttle redundancy and FOC vector control,the ESC pushes reliability to the limit.Its planar thermal architecture and IPX6-rated full potting ensure stable operation in wet,corrosive,and dust-heavy environments.

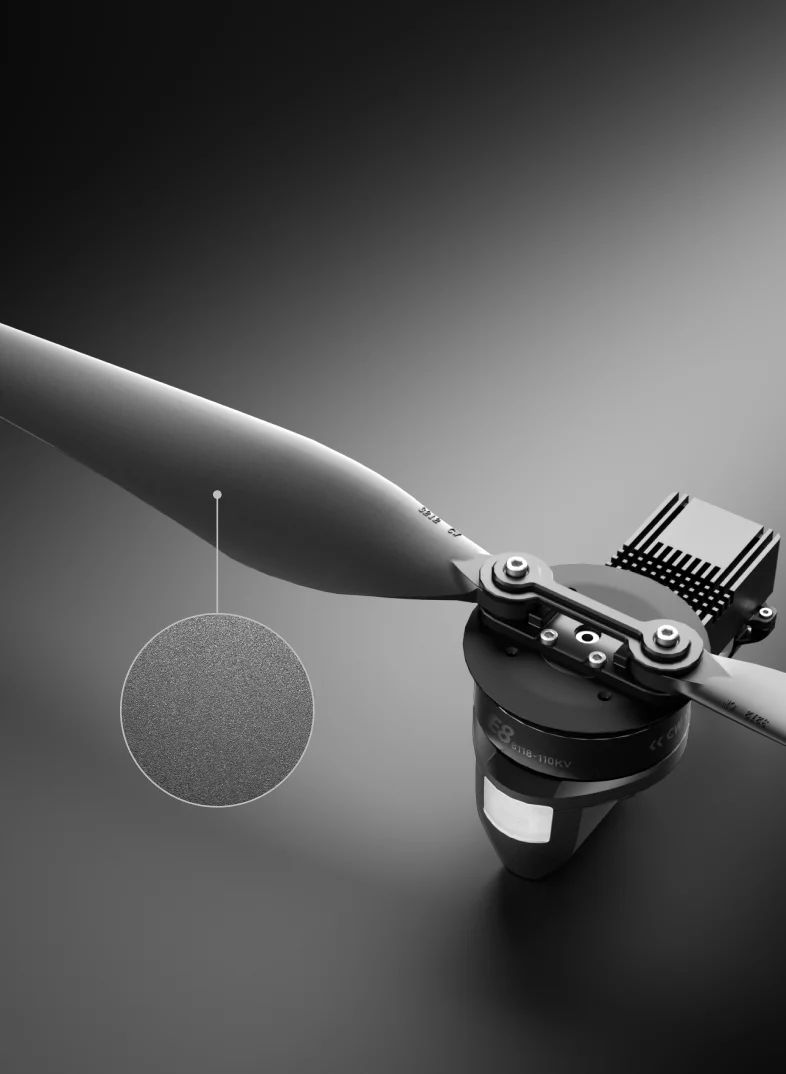

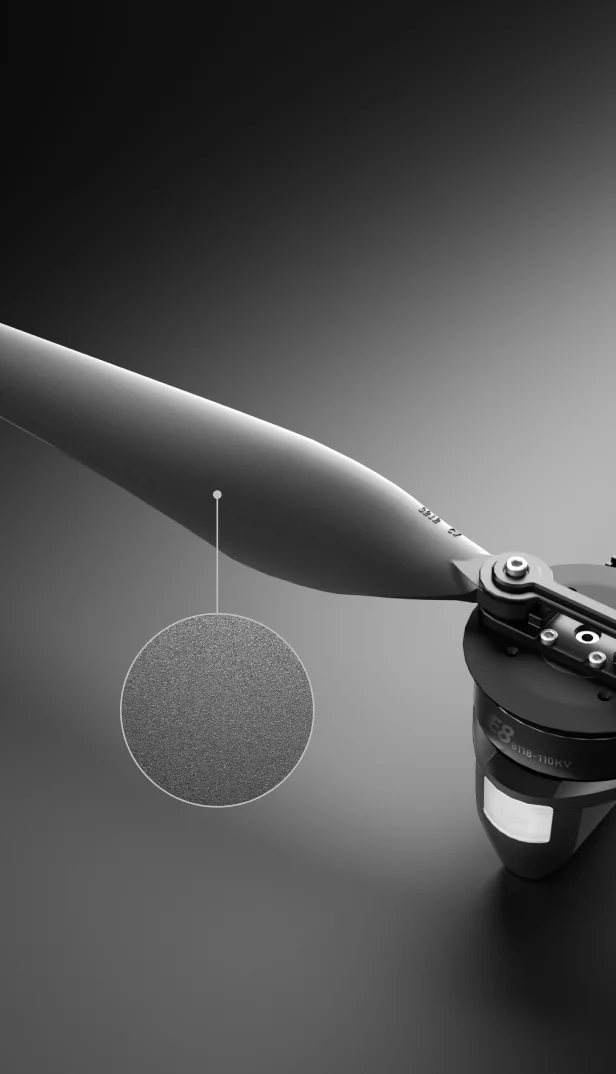

Propeller
Constructed from Carbon Fiber Reinforced Nylon,the 32-inch high-pitch propellers are lightweight yet rigid,delivering optimal lift and stability for heavy payloads.

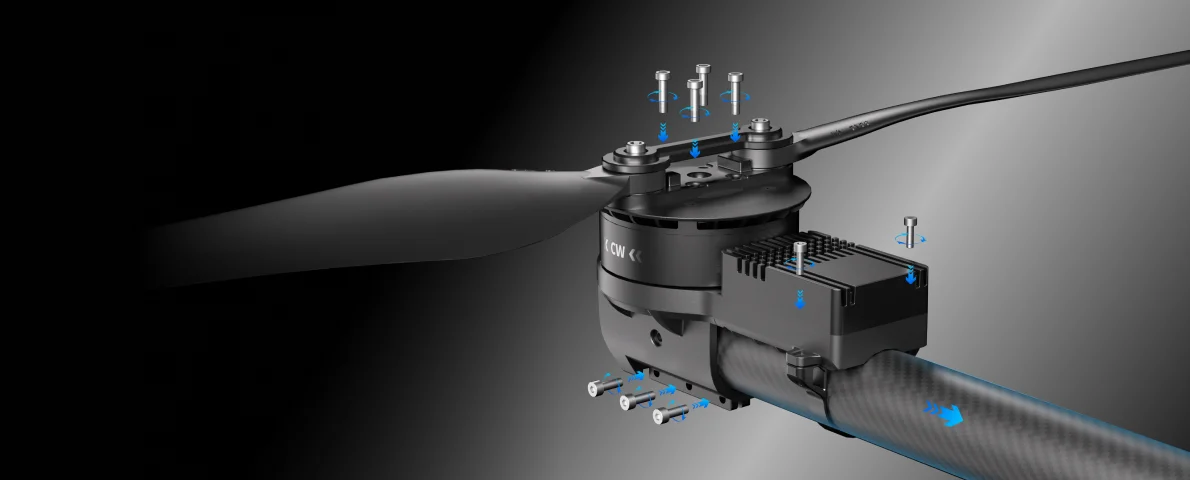

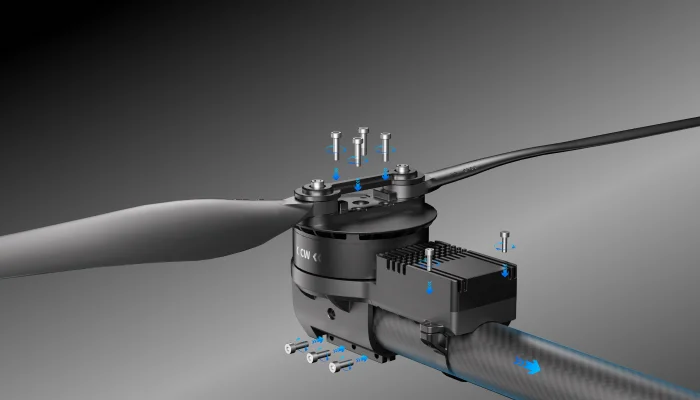

Integrated Design, Modular Assembly, Easy Maintenance
While maintaining a cohesive integrated design,the motor and ESC feature a modular independent layout.
This supports the individual replacement of core components,maximizing maintenance efficiency.
Instant Response, Steady Performance
Hardware-Software Synergy through fine-tuned optimization of the Transmission——Control——Execution link,
E8 achieves millisecond-level response and precise,stable flight performance.

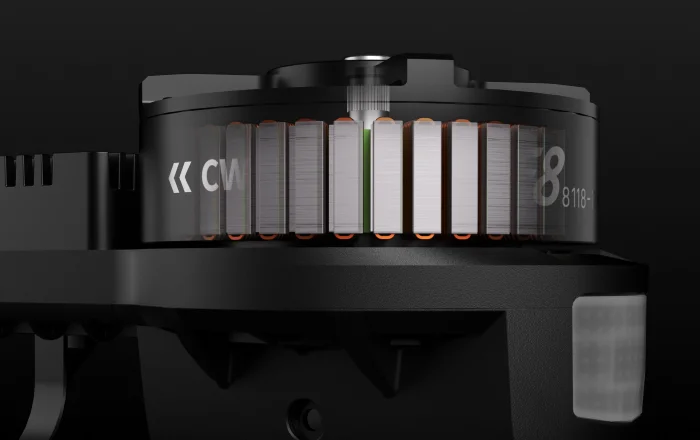

Engineered with precision dynamic balancing and an optimized electromagnetic design
Dual Communacation Protocals & Signal Isolation
Deeply Optimized FOC Algorithm
Equipped with advanced FOC algorithms deeply optimized for UAV dynamic characteristics.
By utilizing Adaptive SVPWM modulation and harmonic injection suppression technology,
the system achieves precise, efficient, and low-noise motor torque control.
Exquisite Craft, Ultra Shield
Superior Carftsmanship, Ultra-Strong Protection IPX6 Rated Durabiliby and fully potted ESC resists pesicide corrosion and rain infilration,allowing post-mission rinsing[2]
The mesh motor base increases air intake while effectively filtering out particles,protecting core components from wear and extending service life.
High-efficiency Heat dissipation Structure and Layout
High-efficiency heat dissipation structure and layout
High-efficiency centrifugal air ducts and an enlarged fan structure significantly boost airflow efficiency. This improves heat dissipation by approximately 18%, ensuring continuous and stable power output.
Optimized centrifugal air duct

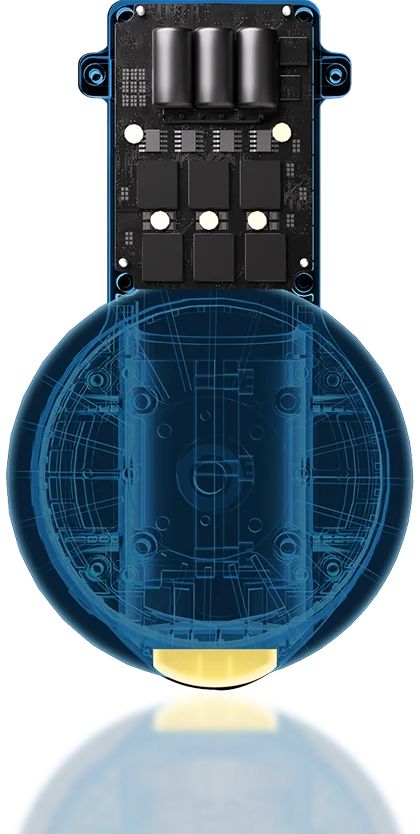

The ESC adopts a planar heat dissipation structure with large fins, cleverly utilizing the propeller's downwash for forced air cooling. This design reduces core temperatures by 20°C compared to stacked designs. An enlarged centrifugal fan boosts airflow efficiency by 18%, ensuring sustained power output.
High-temperature resistant materials
200°C heat-resistant wire and N48SH magnets ensures the motor operates continuously under heavy loads without risk of demagnetization or damage.
Propeller Innovation for Aerodynamic Efficiency

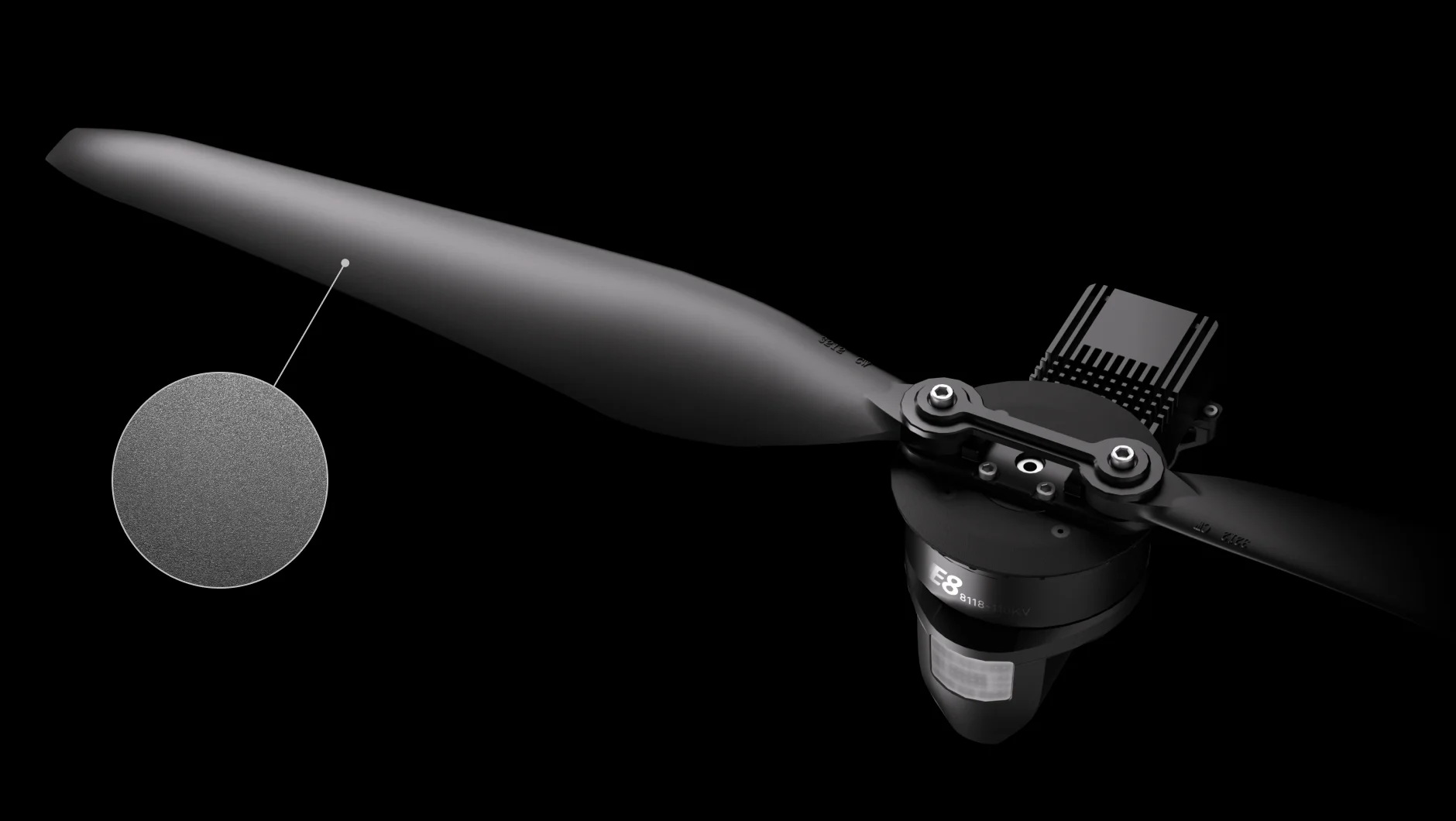

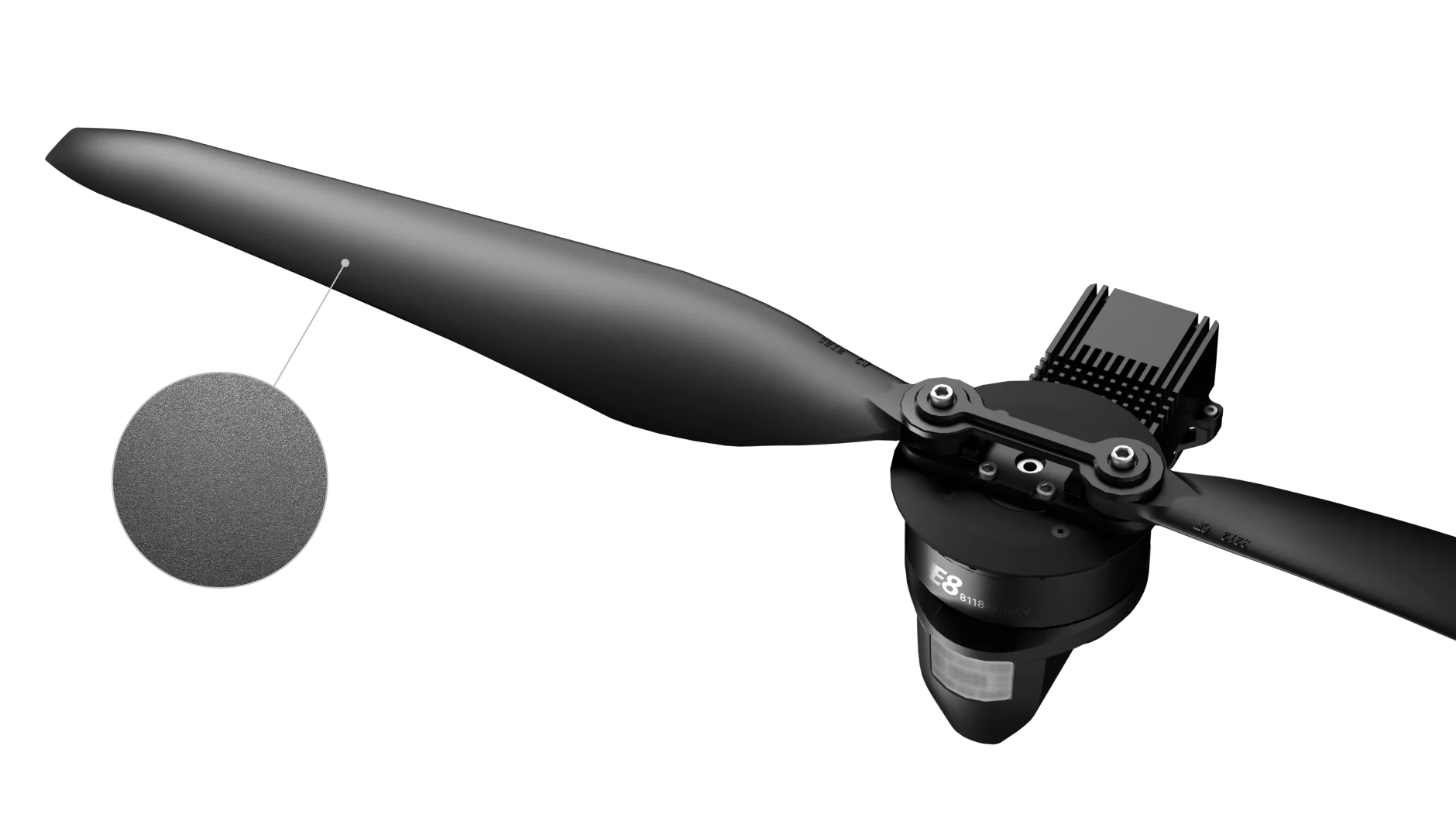

Lightweight Composite Folding Props
Carbon-fiber-reinforced nylon construction ensures strength with minimal weight.

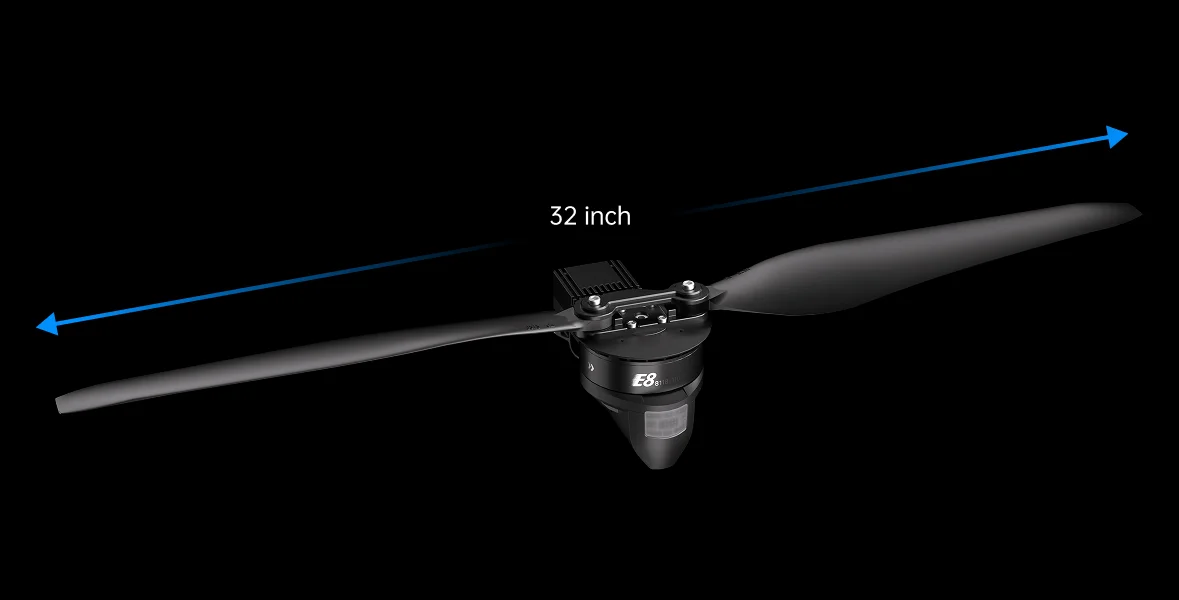

Aerodynamic Optimization
Upgraded to 32 inches with increased pitch, generating 18.5kg of single-axis thrust. Ideal for takeoff weights of 5-8kg.

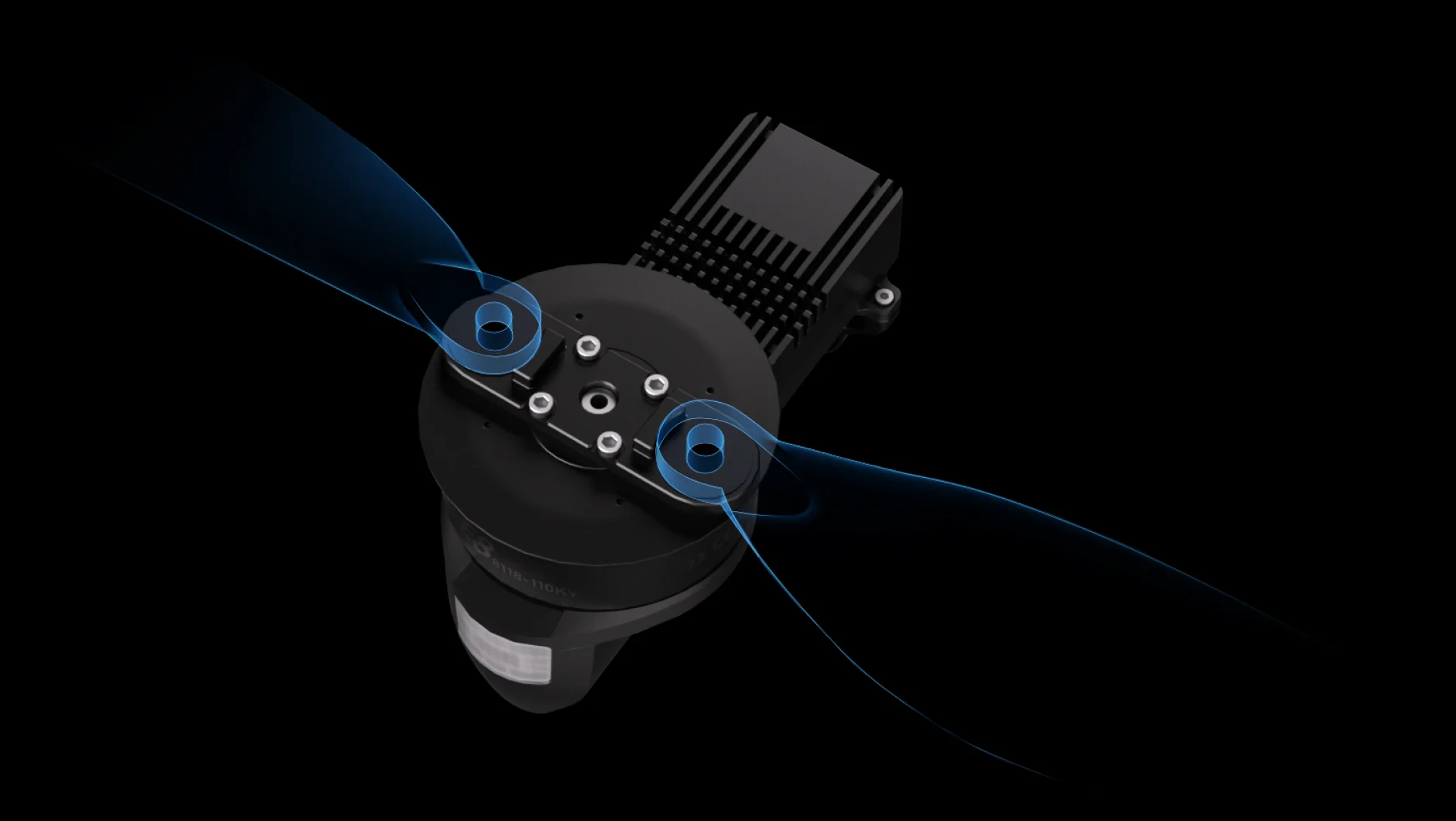

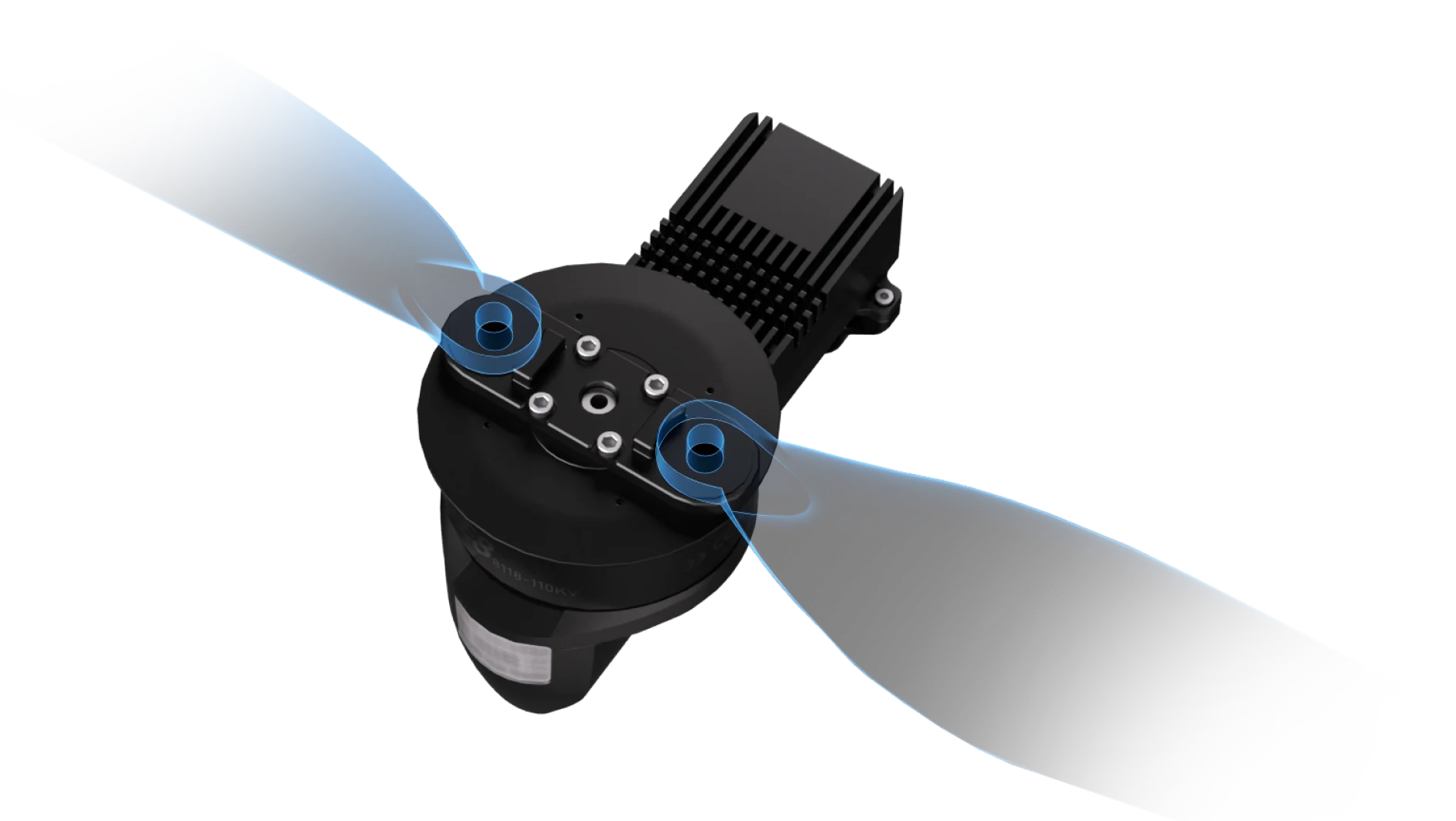

Reinforced Blade Root
Strengthened design drastically reduces breakage risk under high load and dynamic maneuvering.
Comprehensive Scan, All-round Safety
Pre-Flight Safety Check Upon power-up, the system instantly scans seven key parameters—including voltage, throttle status,
and motor phases. Audio-visual codes provide immediate alerts, intercepting hazards before takeoff.
In-Flight Monitoring Continuous monitoring of stall, overheat, and overcurrent states. If anomalies occur, the system
triggers warnings and transmits fault codes for real-time awareness and response.
and motor phases. Audio-visual codes provide immediate alerts, intercepting hazards before takeoff.
In-Flight Monitoring Continuous monitoring of stall, overheat, and overcurrent states. If anomalies occur, the system
triggers warnings and transmits fault codes for real-time awareness and response.
Ultimate Validation for Harsh Application
The E8 system undergoes rigorous validation—extreme thermal cycling, flight controller compatibility,
impact resistance testing to verify its operational performance, ensuring stable hovering and
reliable function in the most demanding environments.
impact resistance testing to verify its operational performance, ensuring stable hovering and
reliable function in the most demanding environments.

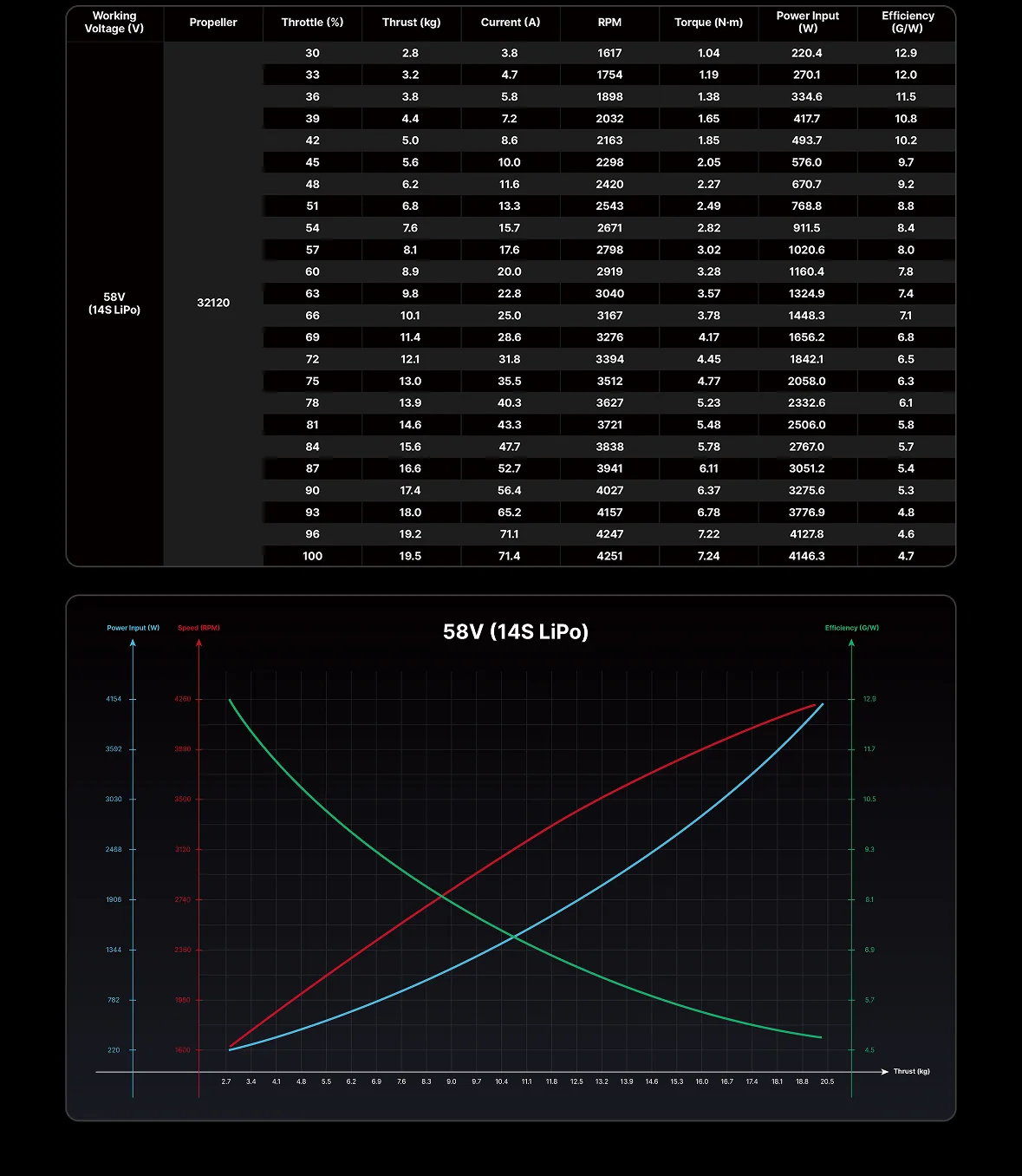

Performance Test
Performance Test
Full-throttle Endurance Test
Compatibility Test

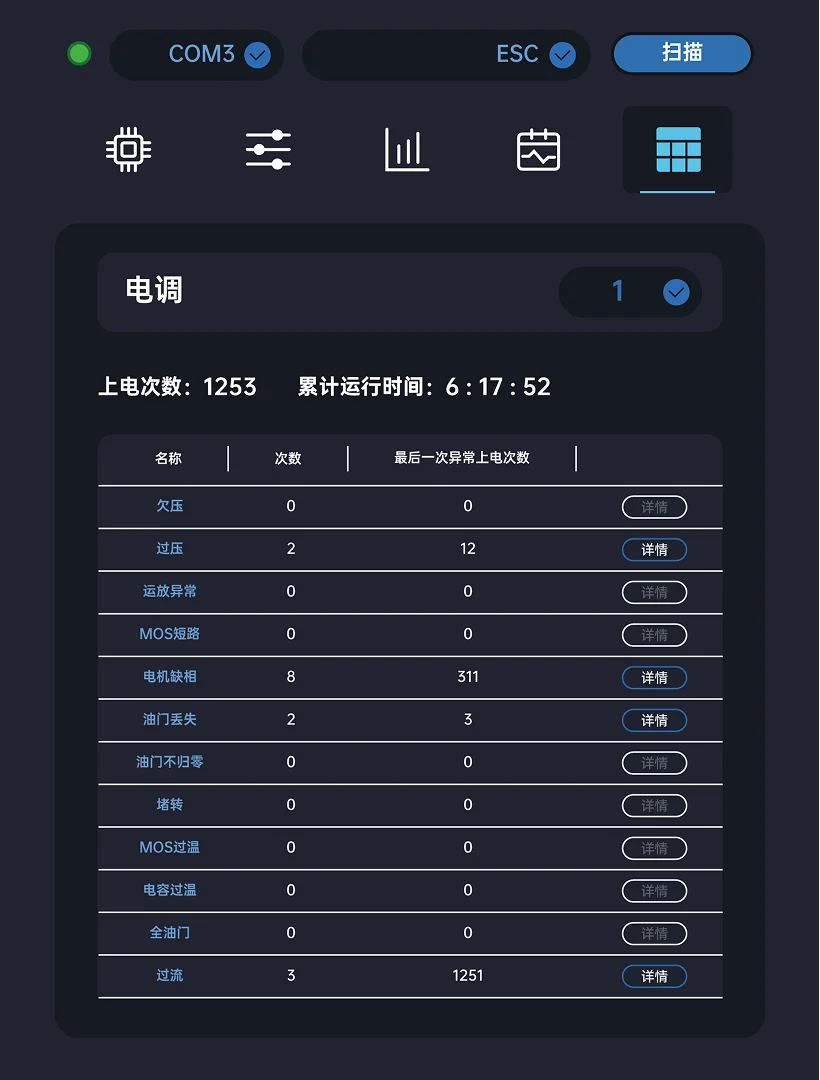

Data-Driven Operations and Maintenance
E8 enables smarter operations through real-time monitoring, interactive alerts, and fault analysis, a complete loop between flight insight and maintenance action.

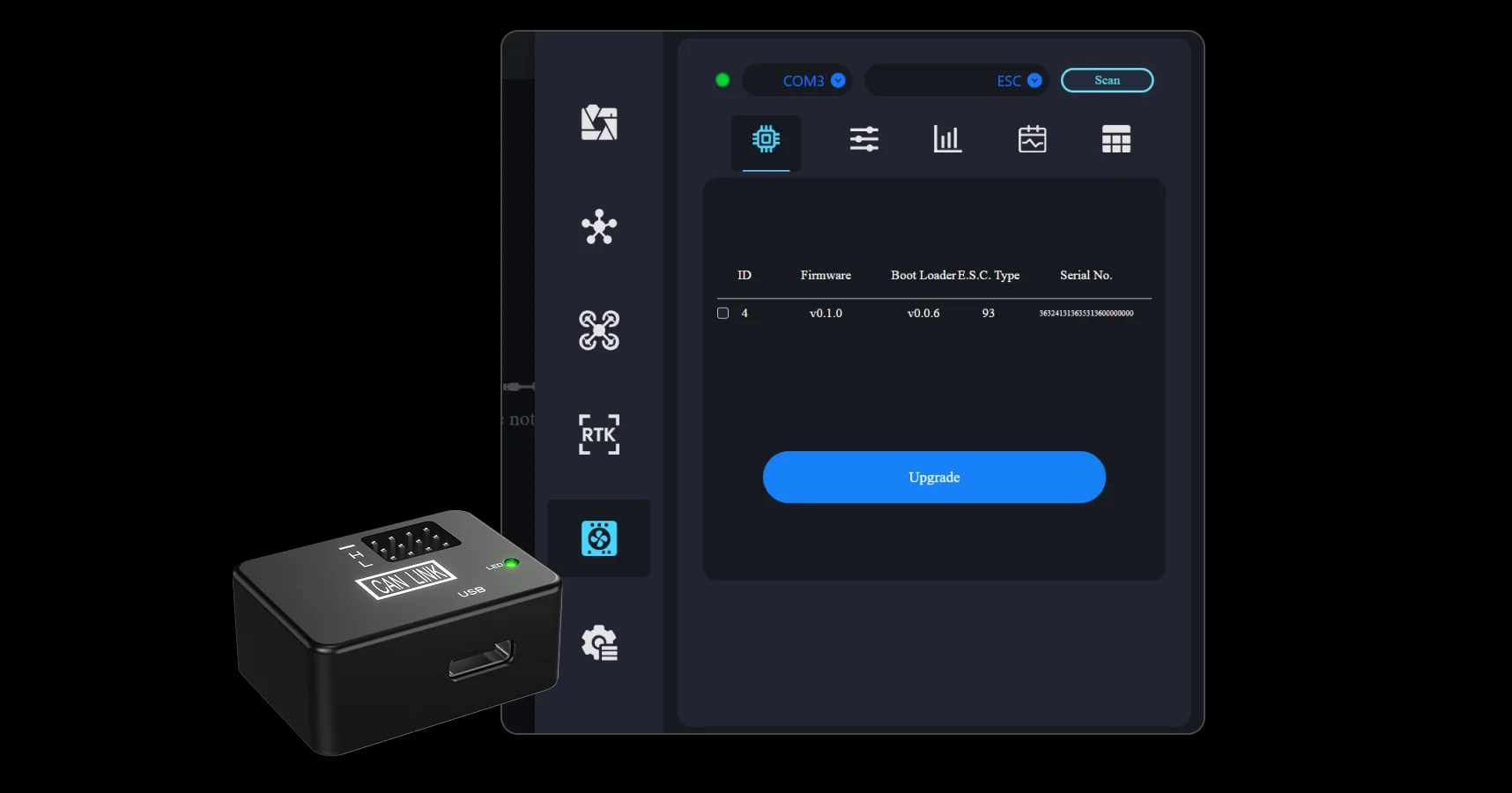

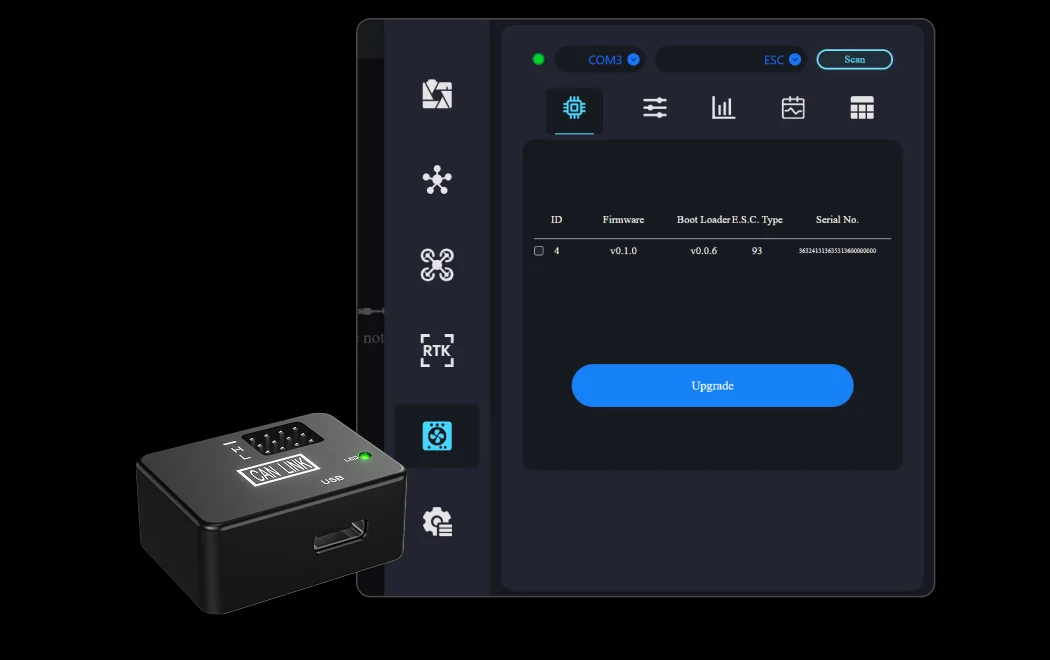

Tuning & Firmware Upgrades

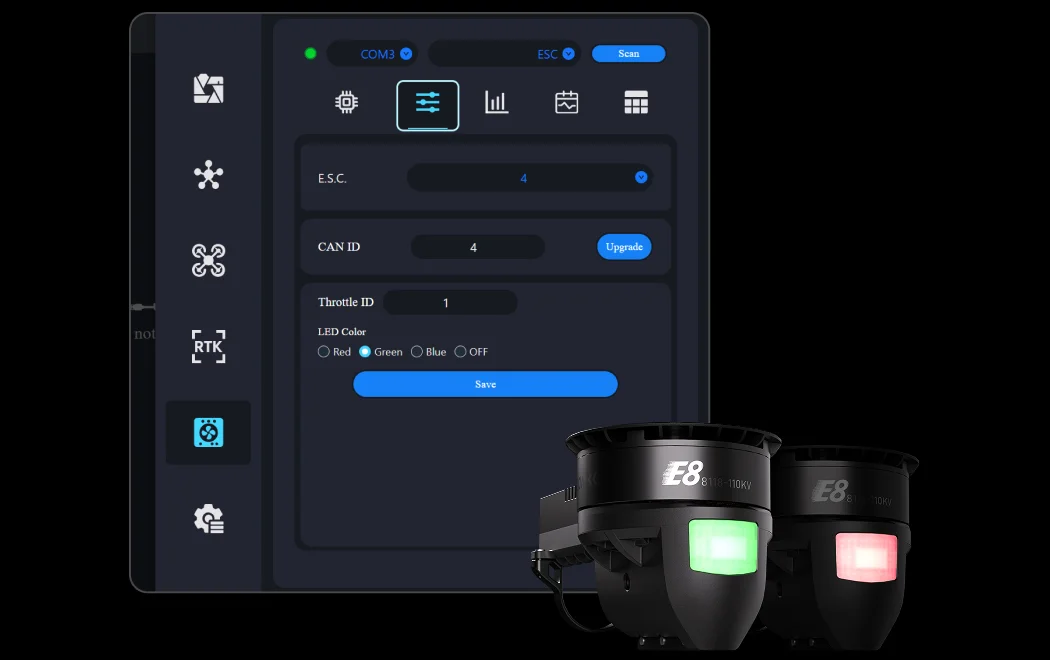

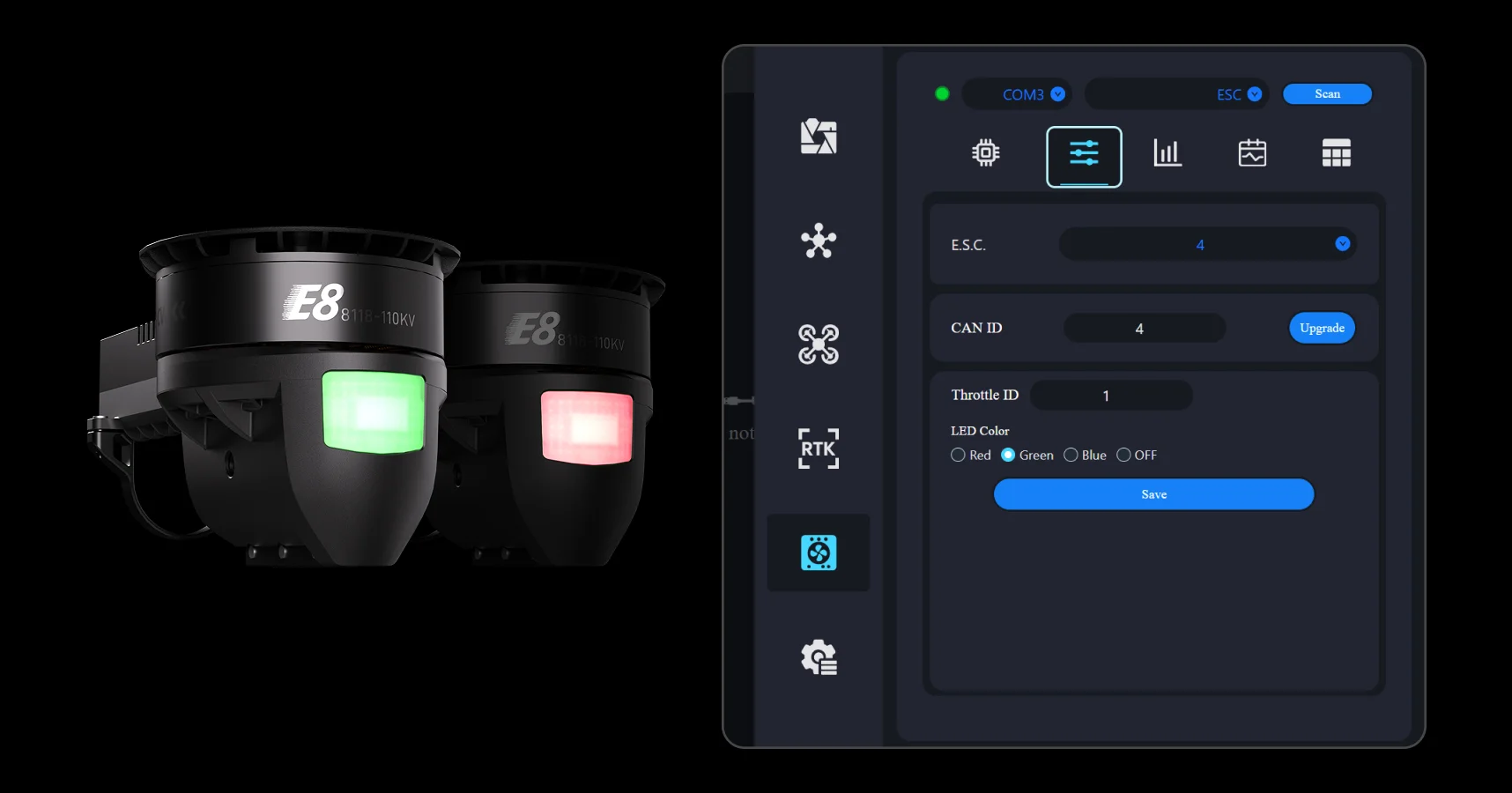

Custom Navigation Lights Color

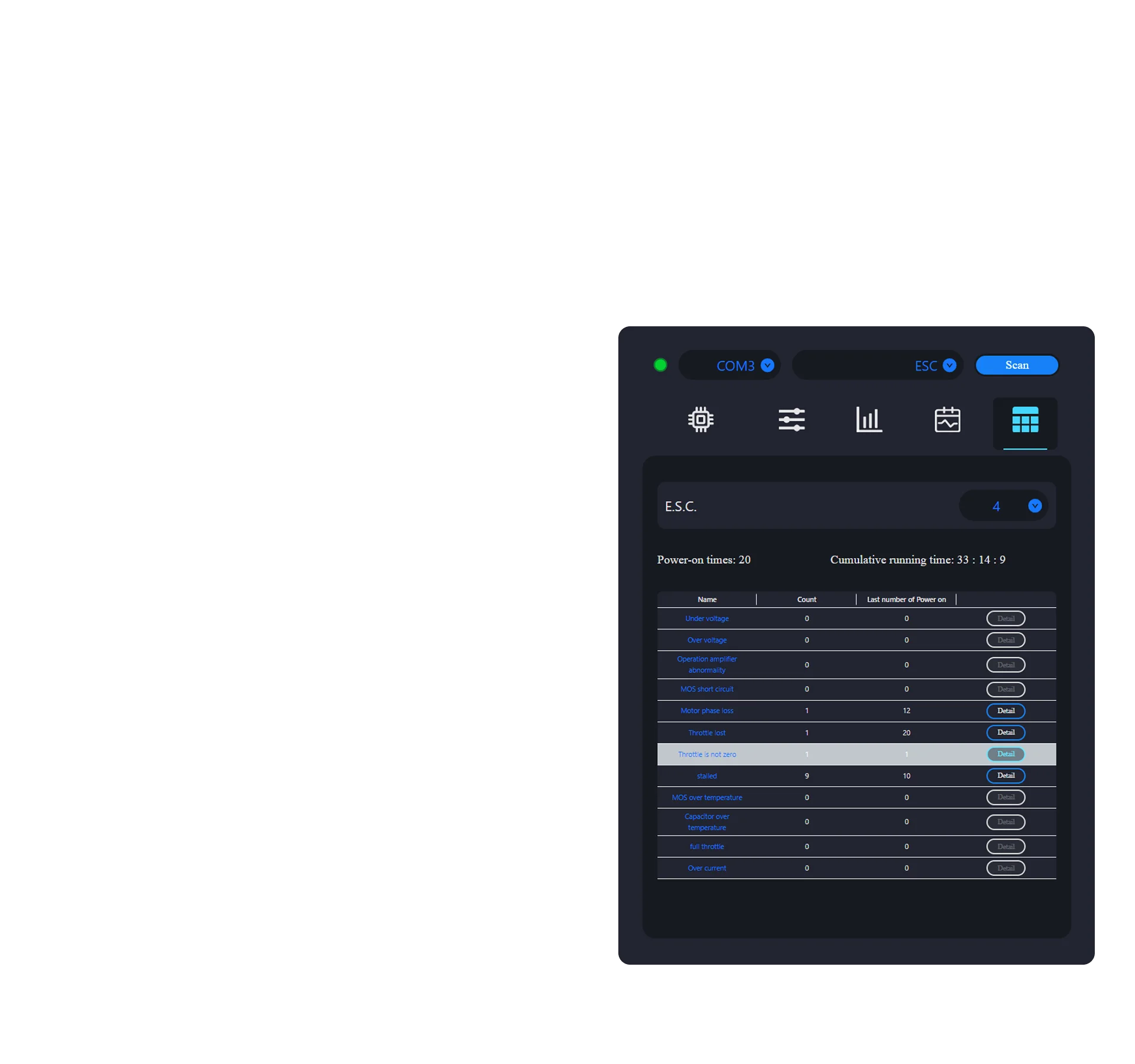

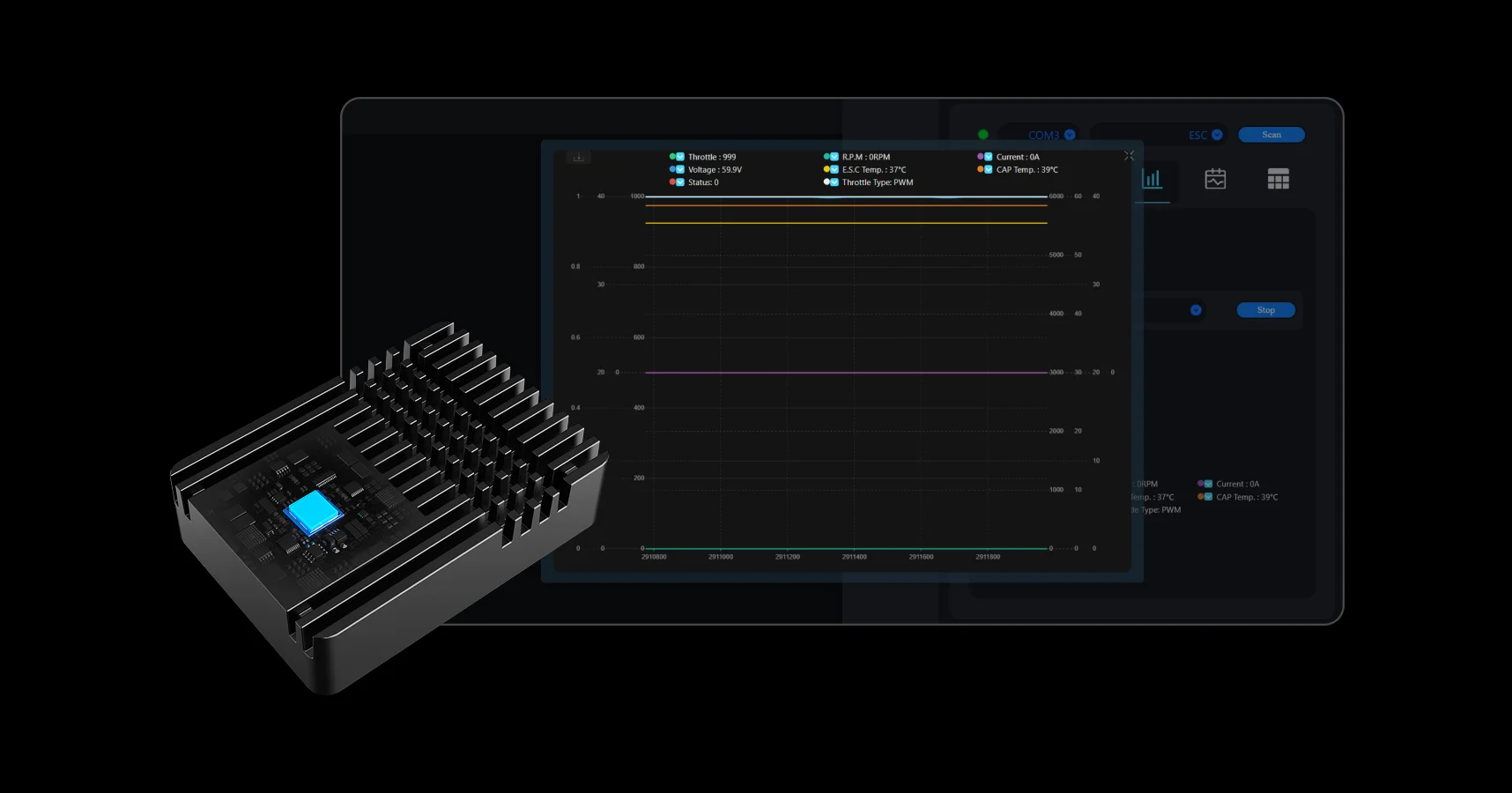

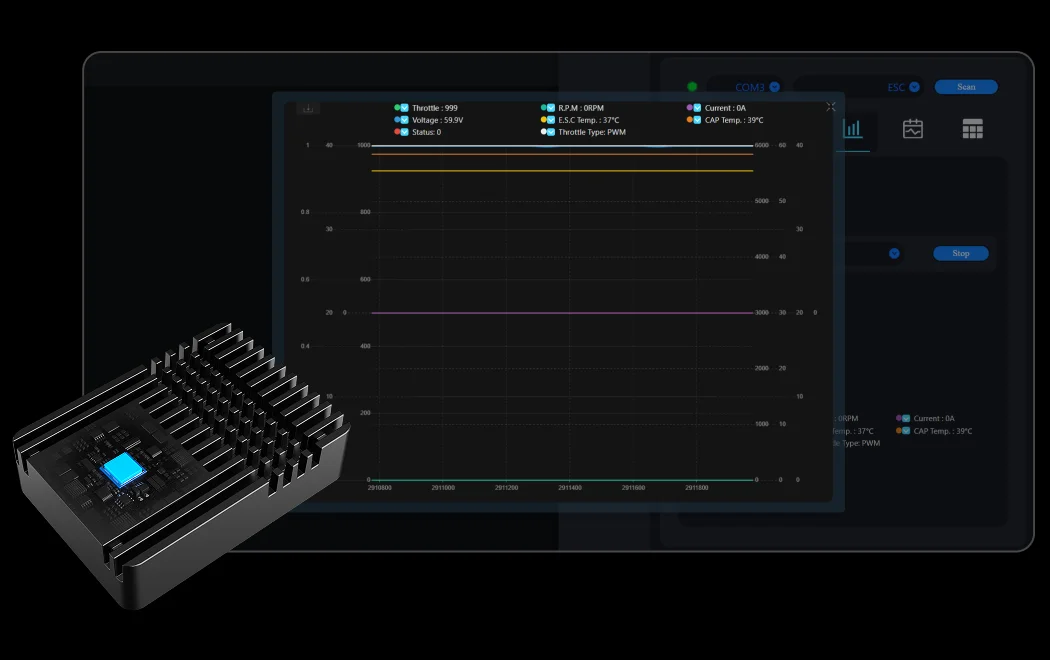

Flight Logging

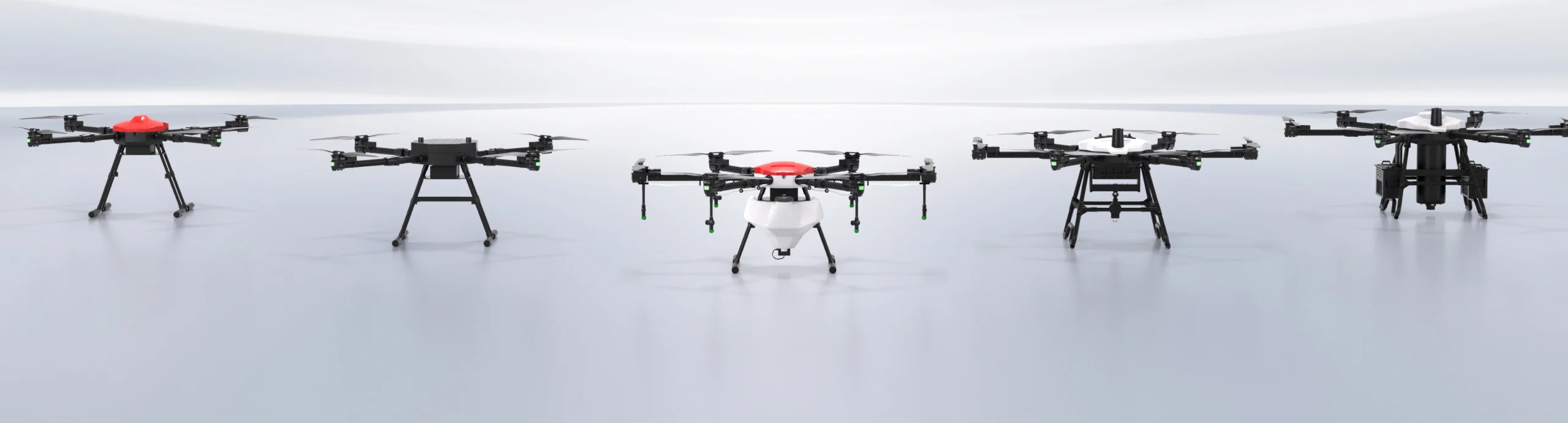

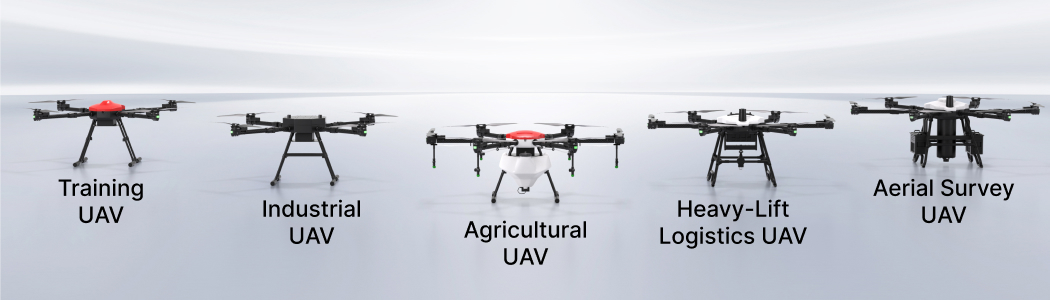

Applications
E3 Propulsion System delivers high-performance propulsion solutions for drones with 600-700mm wheelbases,
engineered for micro flagship industrial drones and aerial imaging drones to perform aerial monitoring of power line
maitance, night security, traffic management, bridge management and aerial cinematography, which is designed to
meet the precision demands of professional missions and the smoothness requirement for premium aerial filming.
engineered for micro flagship industrial drones and aerial imaging drones to perform aerial monitoring of power line
maitance, night security, traffic management, bridge management and aerial cinematography, which is designed to
meet the precision demands of professional missions and the smoothness requirement for premium aerial filming.
UAV Training & Education

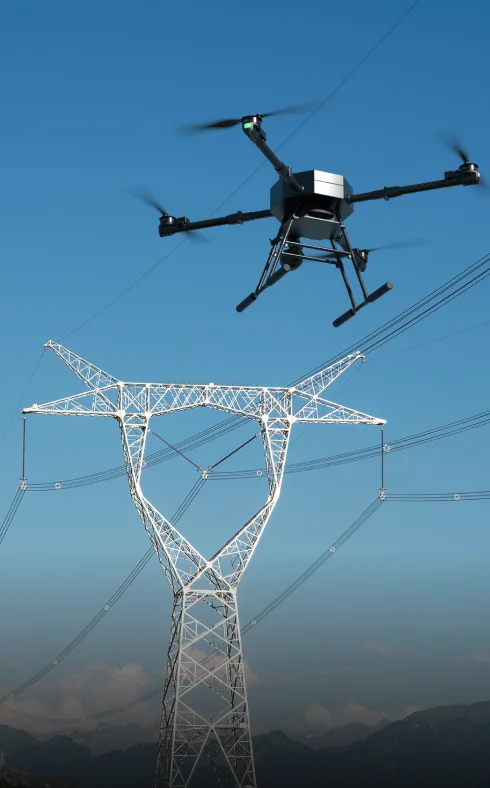

Aerial Inspection
Crop Spraying

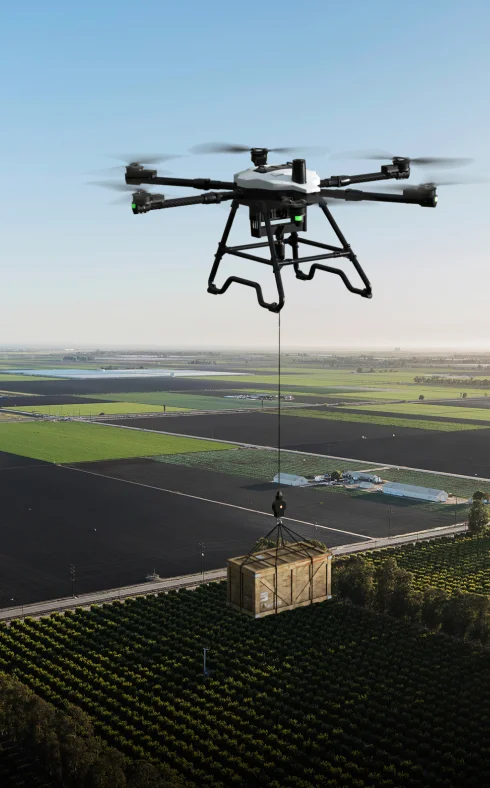

Logistics Transport
