Technical parameters
General Specifications
Maximum Thrust (Signle-aixs)
18.5 kg (Signle-aixs)
Recommended Takeoff Weight (Signle-aixs)
5-8 kg (Signle-aixs)
Recommended Battery
12-14S LiPo
Cable Length
Power Cable: 1000 mm, Signal Cable: 1100 mm
Single-Axis Thrust Efficiency
10.0-8.0 g/w
Compatible Drone Wheelbase
≥1200mm
Tube Diameter
φ40 mm
Weight (Excluding Propeller)
960g
Rated Input Power
1042 w
Ingress Protection
IP6X
Rated Output Power
908 w
ESC Specifications
Driven Model
80A FOC
PWM Input Voltage
3.3/5 V
Throttle Pulse Width
1050-1950 μs
PWM Frequency
50-500 HZ
Max. Operating Voltage
63 V
Operation Current
80 A (Excellent Heat Dissipation)
Max. Current
150 A (Peak Current 3s)
Communication Protocol
CAN
Firmware Upgrade
Support
Digital Throttle
CAN
Motor Specifications
KV
110 rmp/v
Stator Size
81*18 mm
Slot-Pole Configuration
36N40P
Weight
526 g
Propeller Specifications
Diameter
32*12.0"
Pitch
240 g

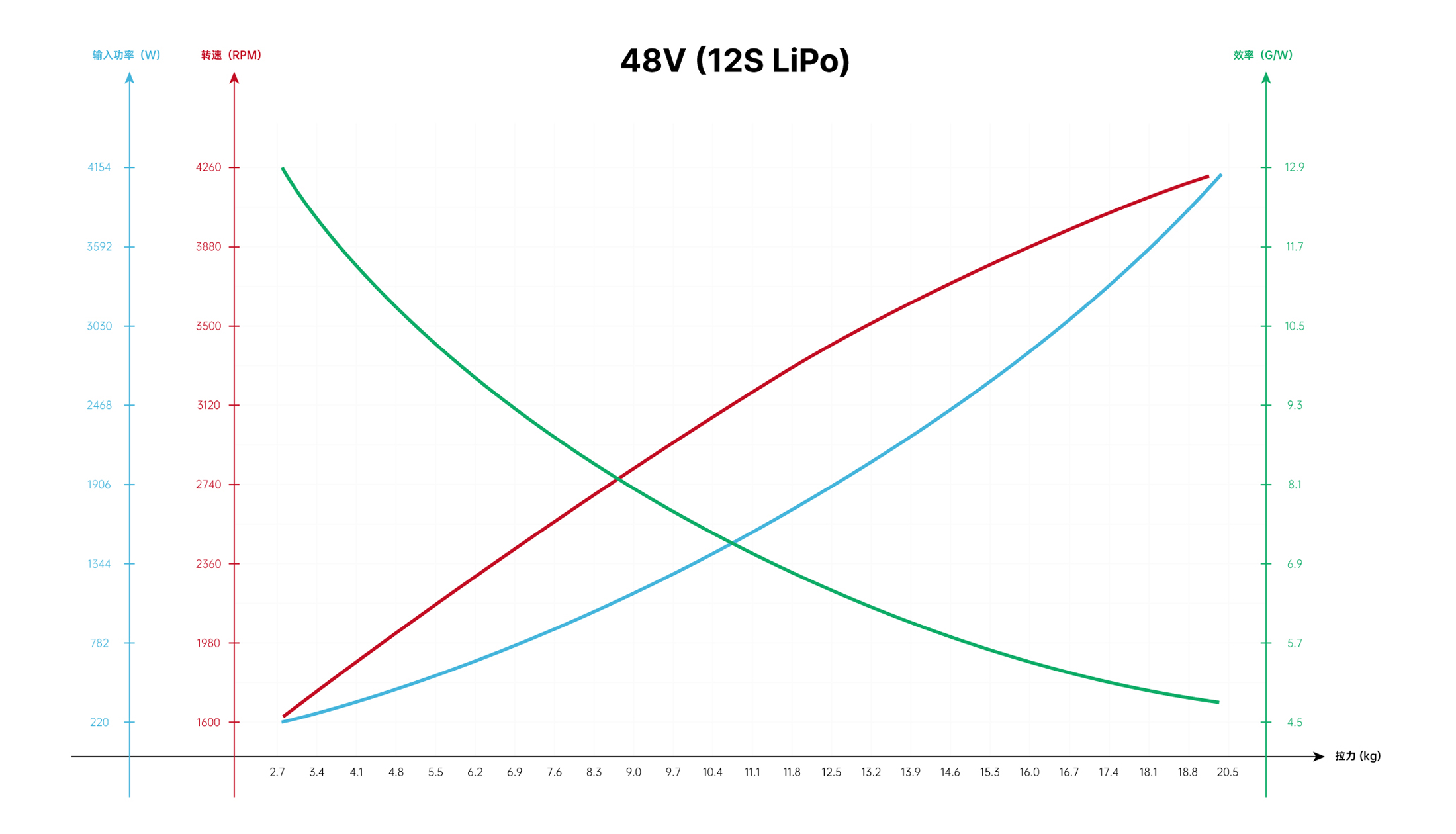

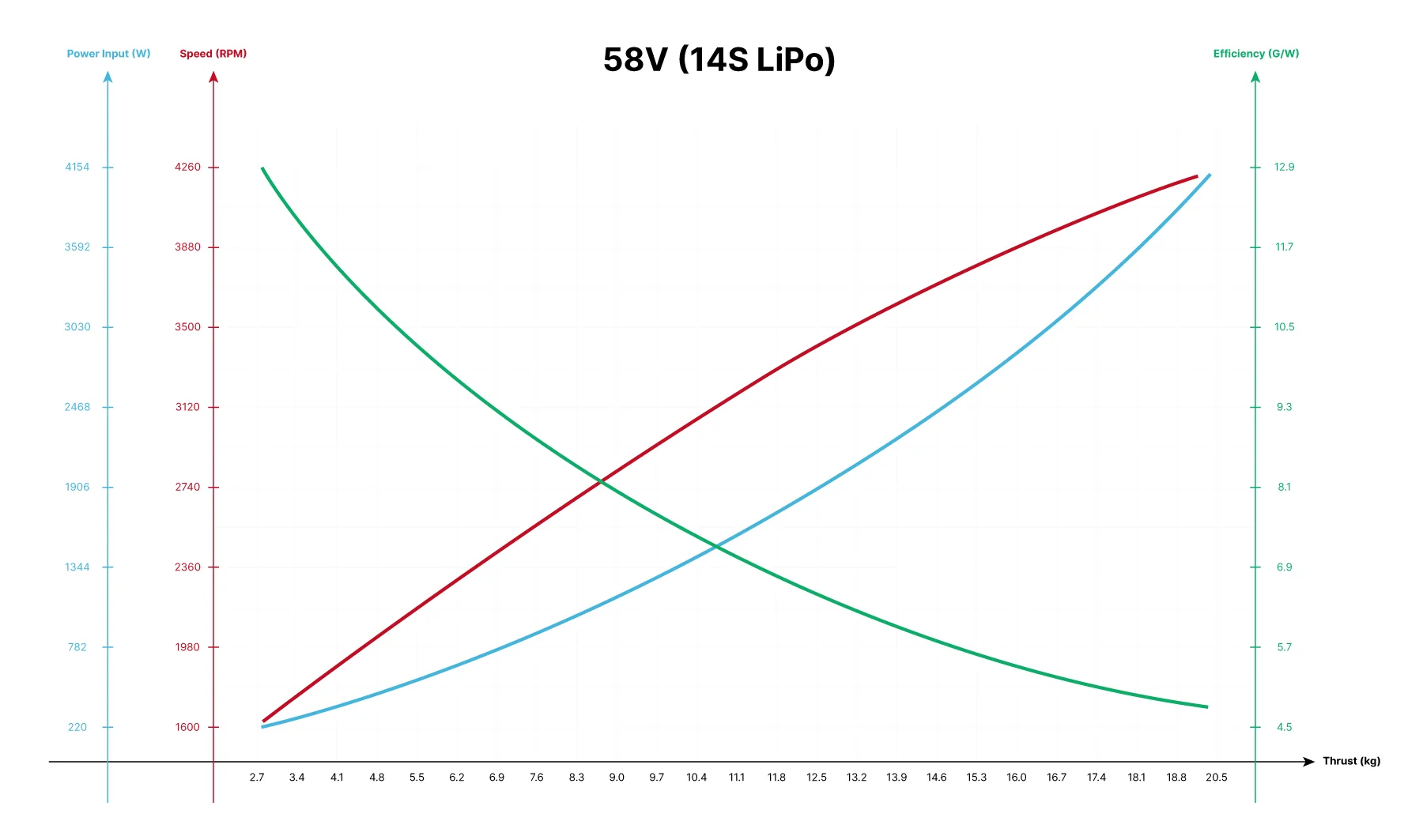

Propulsion System Efficiency Record Data

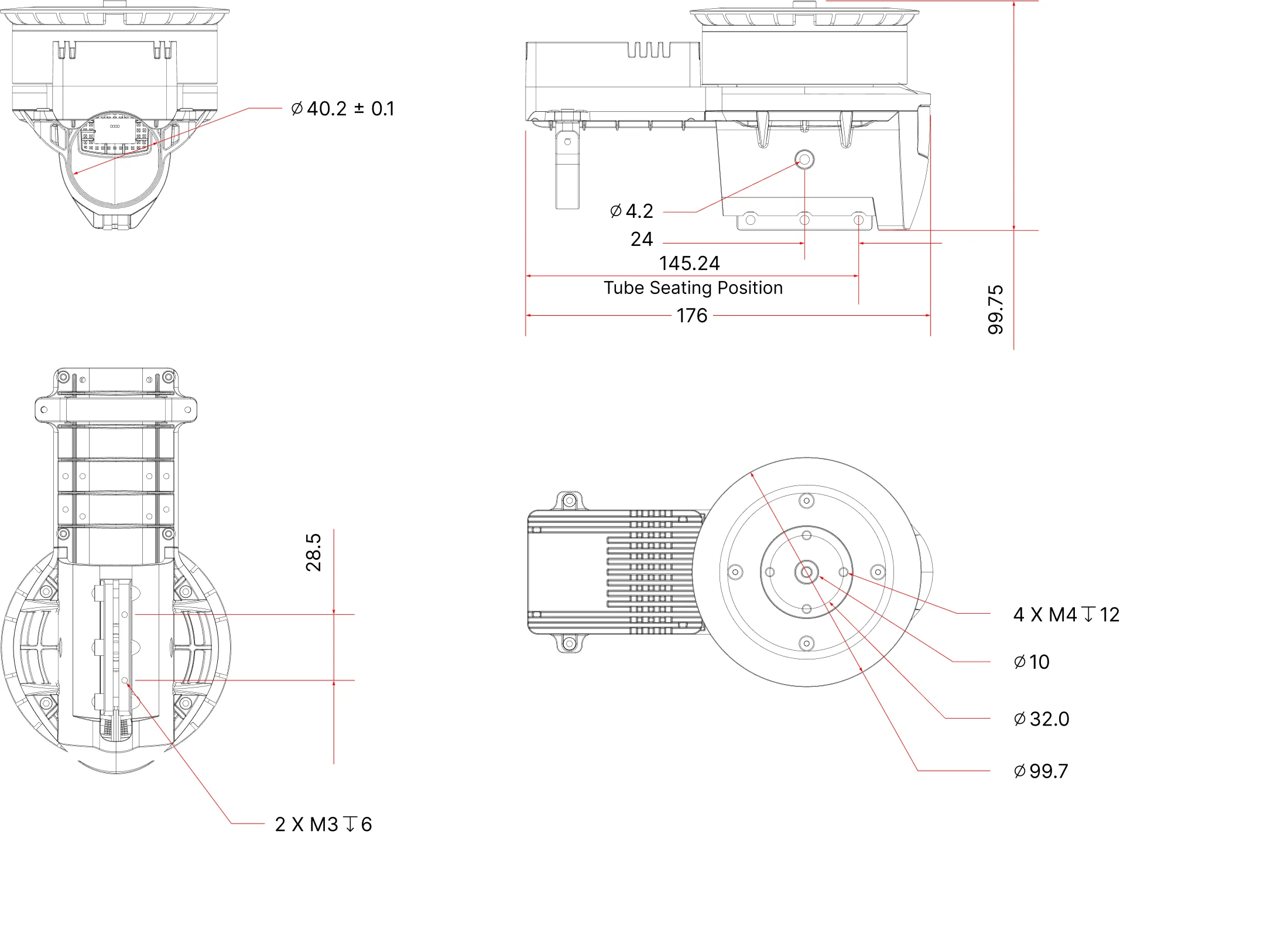

Product Dimensions
