GNSS Module

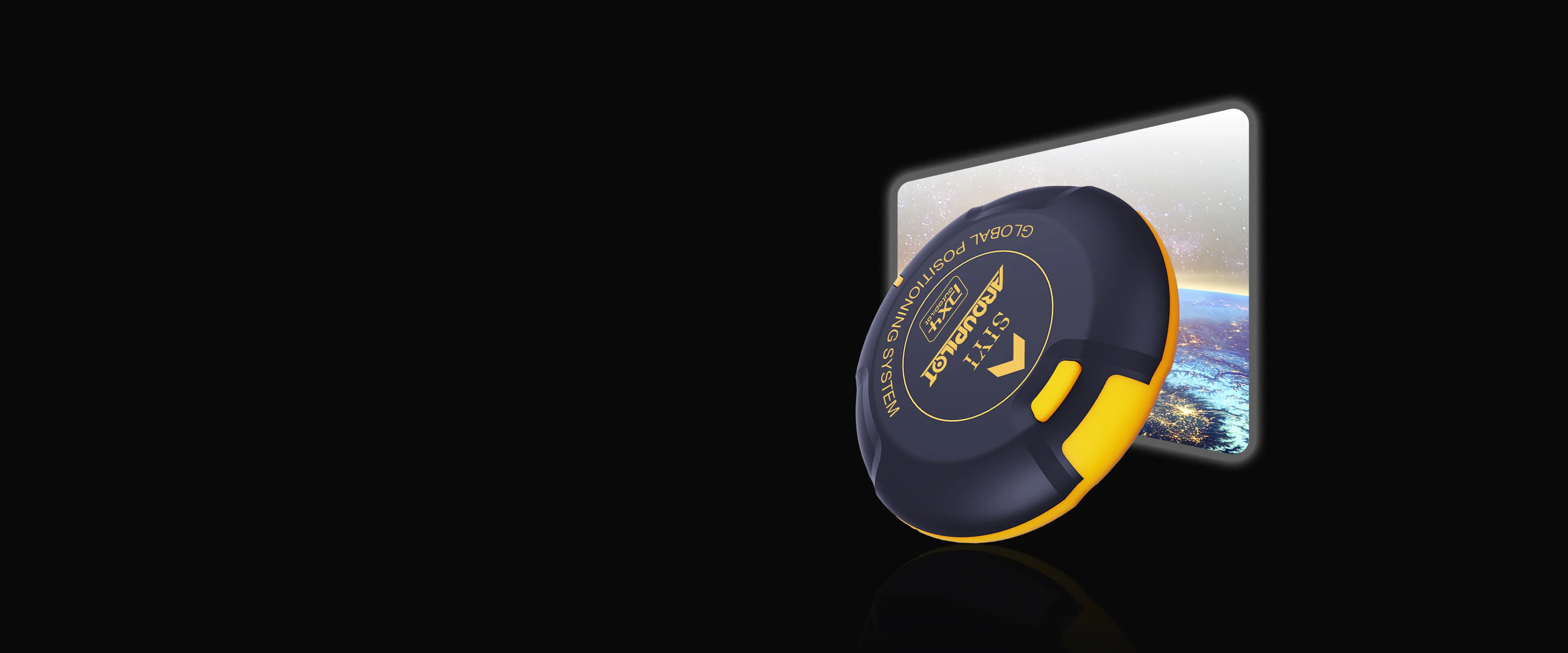

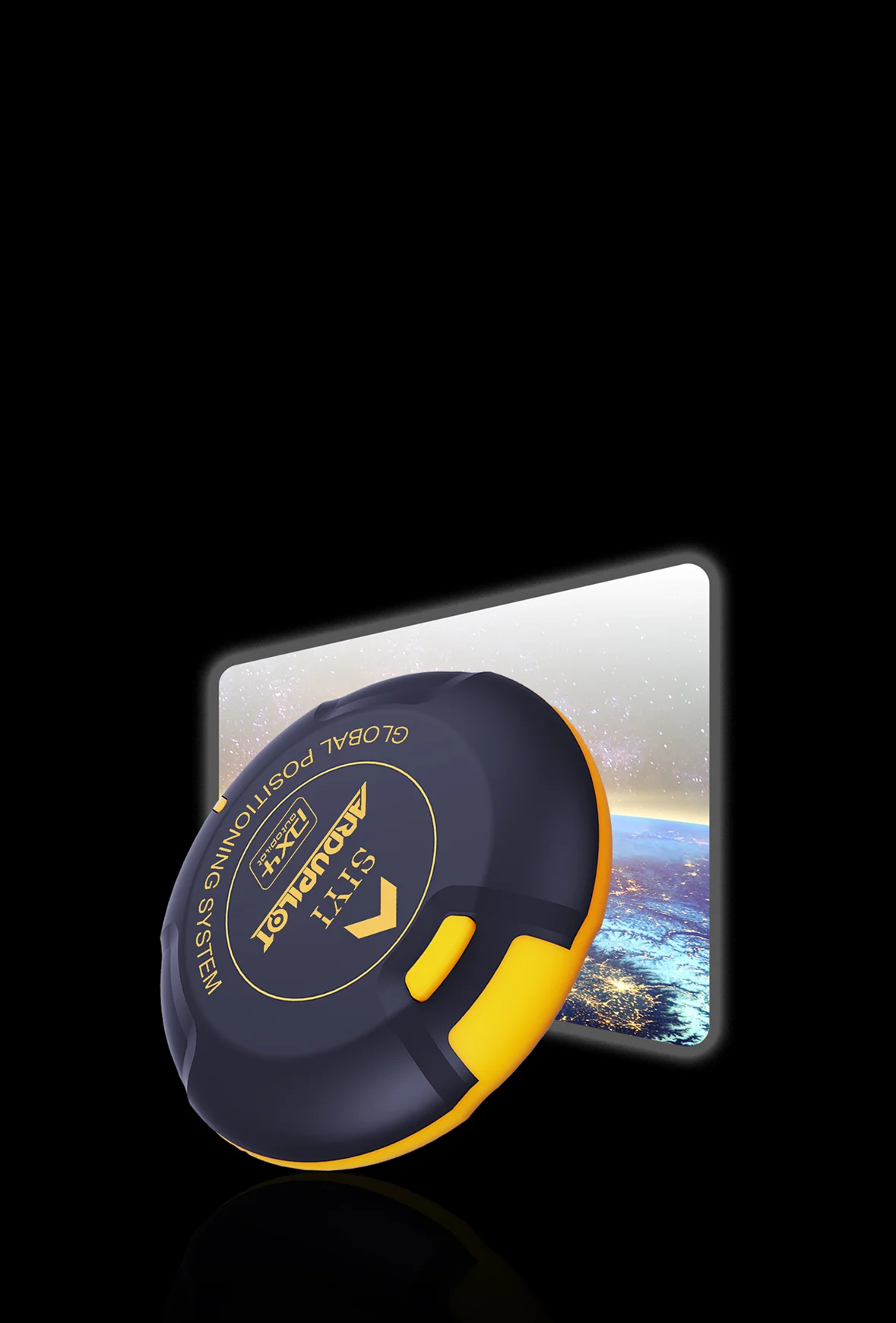

M9N GPS
Buzzer Indication
Safety Switch
RGB Status Indicator
Four-Satelite
High-Gain Antenna
High-Gain Antenna

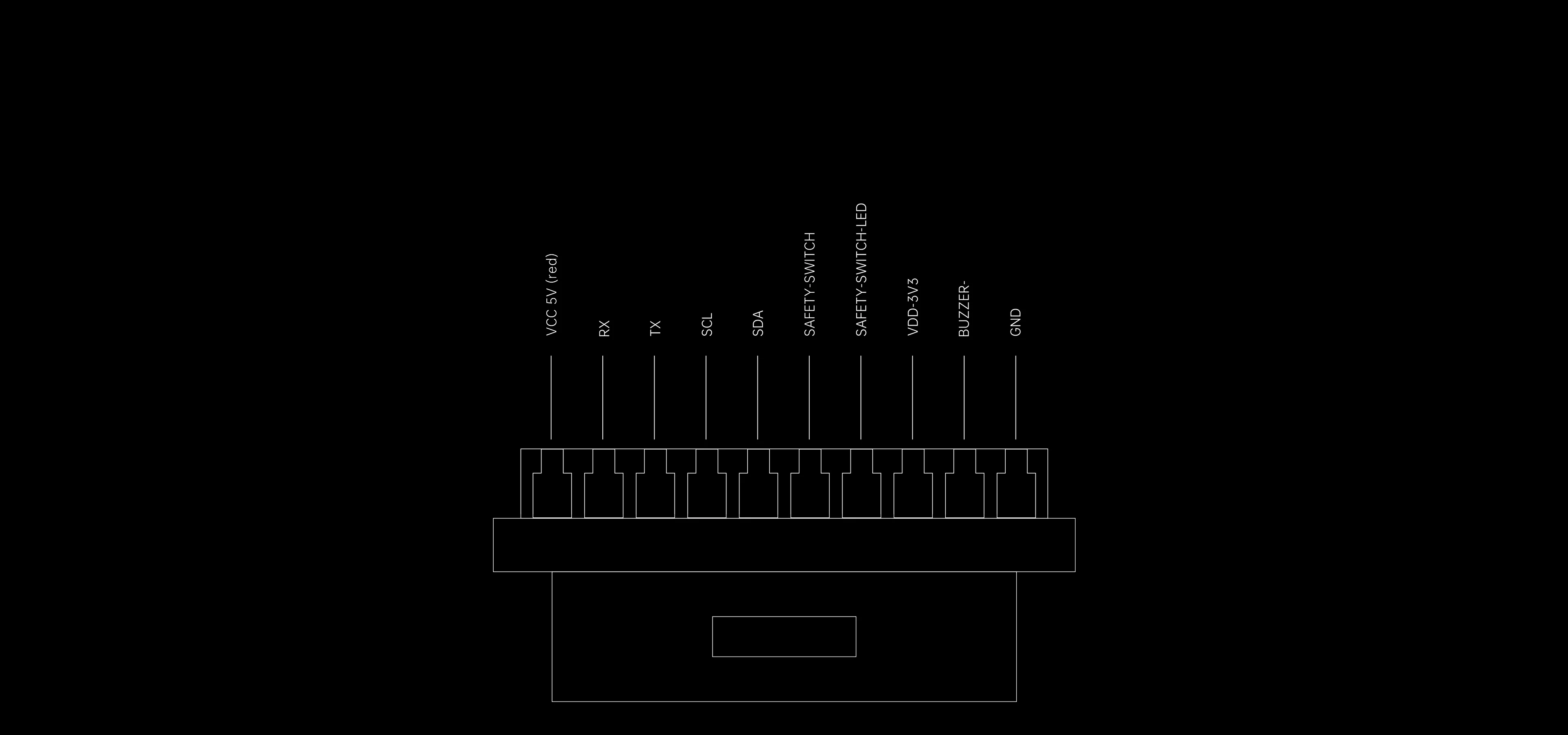

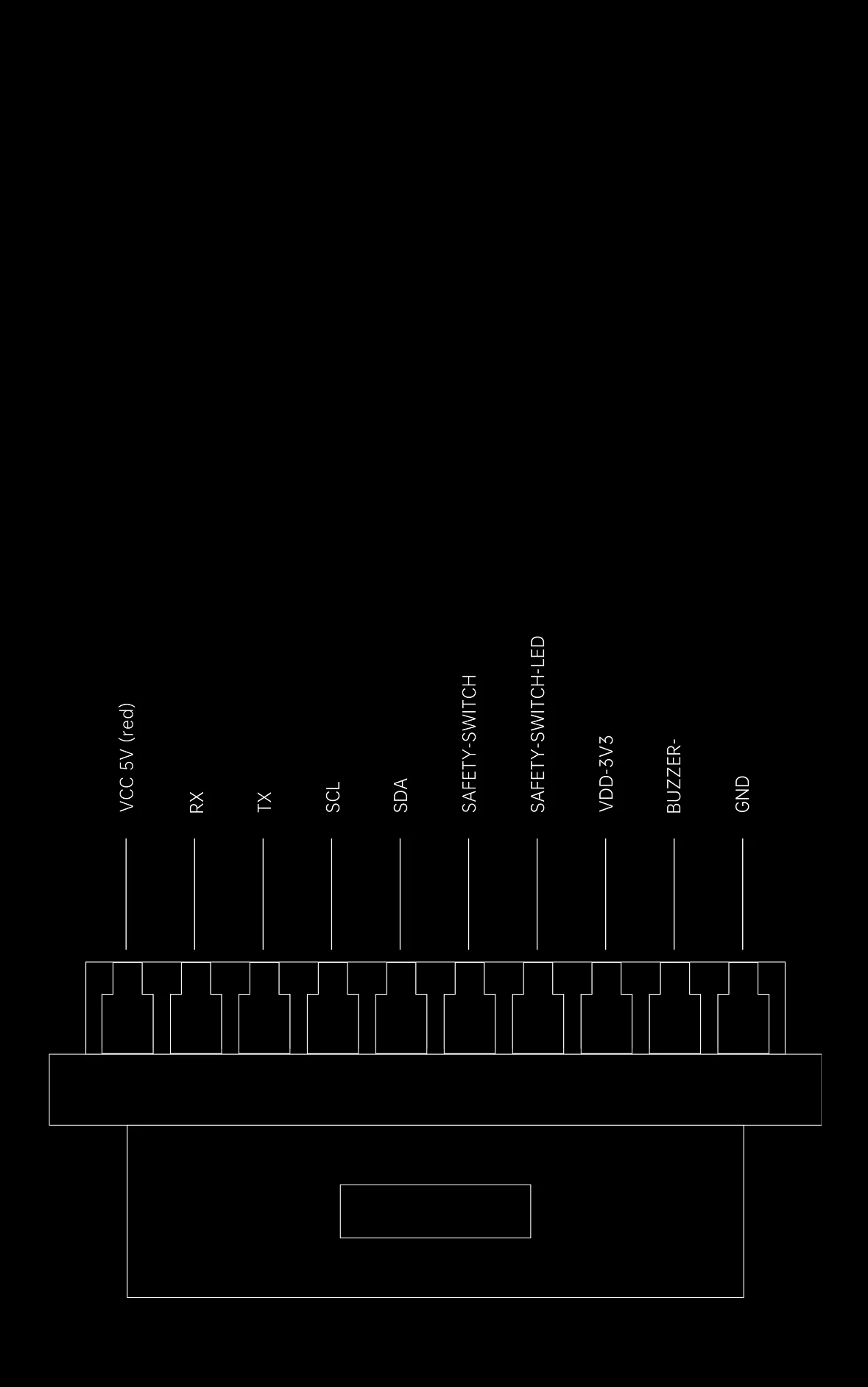

Pin Out
(Including IST8310 magnetometer,flight controller status indicator, buzzer, and safety switch)
Dual Anti-Jamming and Filtering Design
M9N GPS module adopts the LNA+SAW anti-jamming filter design, which can effectively avoid the influence of
airborne equipment such as the air unit of image transmission and datalink systems on the GPS positioning reception.
